Overview
The Seat Belt Warning System is the newest product in addressing your safety needs. Designed to alert the driver, this module will indicate when restraints of occupied seats are properly fastened keeping personnel safe. This system meets NFPA 1917 requirements for your ambulance. Simple and reliable, the Seat Belt Warning System is based on the patented and proven V-MUX® multiplexing technology.
Features
- Low profile, compact size
- Supports commercial and custom cab seating layouts; up to 10 seats
- Dimming feature adjusts indicator intensity to synchronize with dash lights
- Integrated door open indicator
- Built-in audible alarm will sound when the display is red and parking brake is released
- Standard 4 year warranty

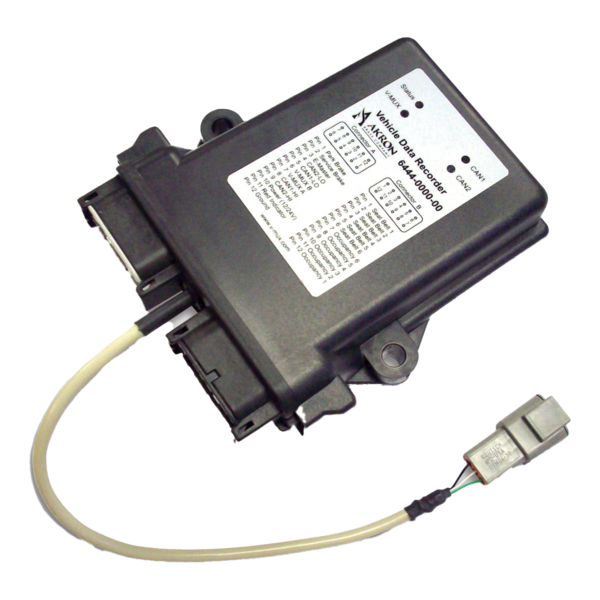

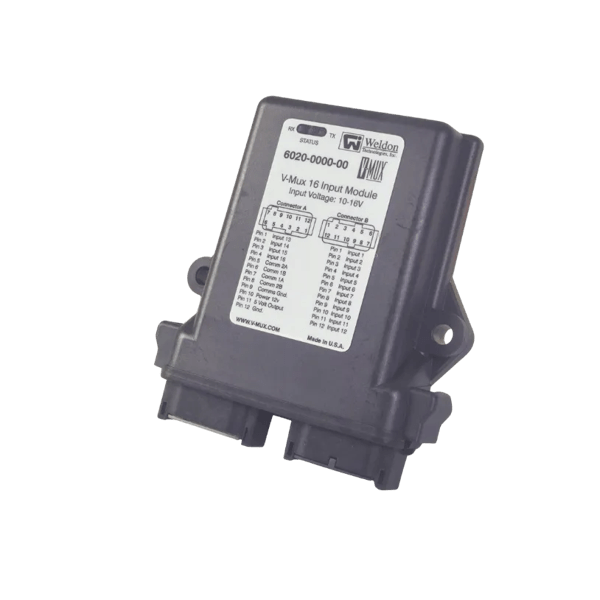

- Use the 6020 node as an entry point system – update to the optional 6444 Vehicle Data Recorder (VDR)
The 6020 or 6444 nodes can accommodate up to 7 seat positions, master warning switch, and parking brake. The inputs can be configured within the SystemDesigner® software. More seats/inputs can be added by including an additional module.
SBI MODULE (WELDON) see 6204-0024-00
Technical details & documents
For the SBI MODULE (WELDON) see 6204-0024-00
To view all documents login to your account
Specification
| Style | 6204-0014-00 |
|---|---|
| Brand | Weldon |
| Inventory Type | Finished Good |
| Engine Power | 0.00 HP |
Bid Specification Template
Specify the Weldon Seat Belt Warning System in your next ambulance. The system shall consist of one of two Seat Belt Indicators, one indicator has eight seat positions, a door ajar and warning ICONs. The other indicator has ten seat positions. The indicator shall have an audible alarm to alert the driver when there is a seat violation. The seats shall be connected to the Weldon 16 input node or the VDR node. The System shall have at least 5 seconds of delay before setting off a violation to account for bumps.
