Overview
Get a high-volume engine-driven water pump you can depend on the first time and every time. Designed for wildland firefighting fleets, the PowerFlow HPX75-KBD24 is approved by the United States Forest Service (USFS) for use on all Type 4 and Type 6 USFS apparatus. With over 100 years of experience, Hale Products produce tough, dependable fire pumps preferred most by firefighters.
Features
- Flows ranging from 15 GPM @ 350 PSI to 145 GPM @ 90 PSI
- Kubota Super Mini Series D902 24.8-HP 4-cycle diesel engine
- EPA Tier 4 emissions compliant
- Electric start
- Anodized aluminum alloy pump head and body
- Pump head and body coupled together with stainless steel band clamp for easy serviceability
- Bronze impeller and renewable wear ring
- Self-adjusting mechanical seal
- Available 12V ESP primer
- 2.0” NPT suction connection; 1.5” NPT discharge

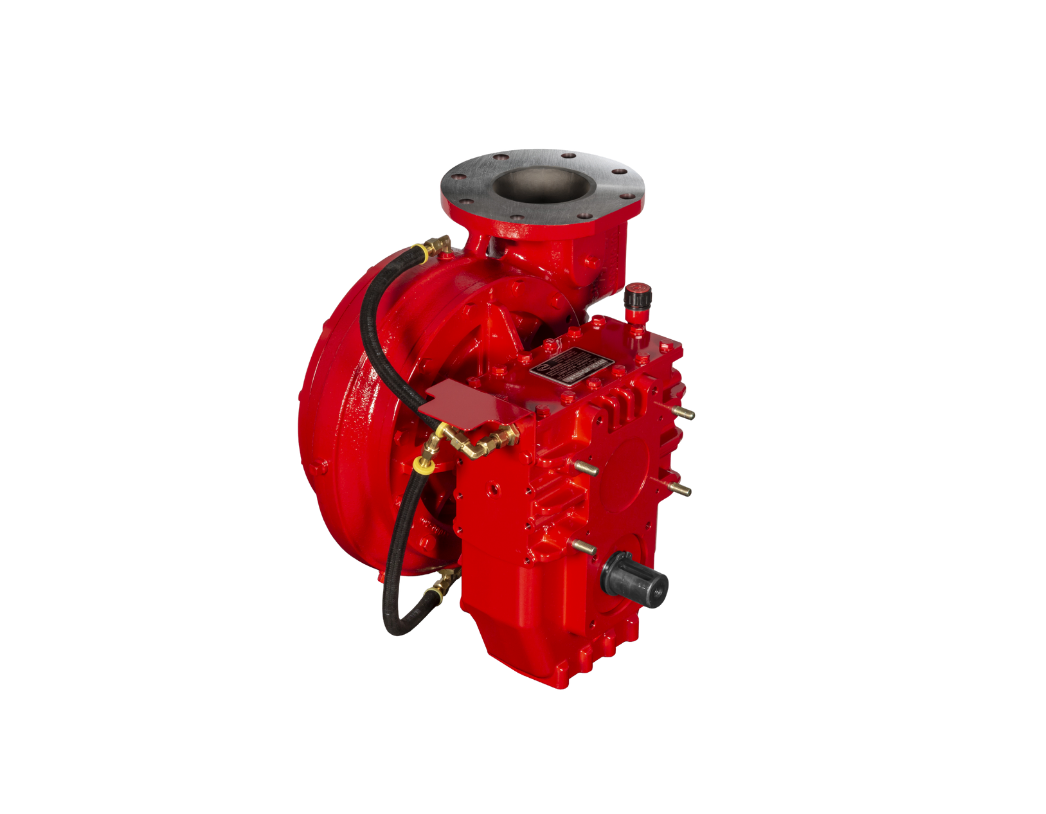

PowerFlow HPX75-KBD24 High-Pressure Wildland Water Pump
- Product code:
- 545-075X0-K24
- Applications:
- Fire OEMs
Technical details & documents
For the PowerFlow HPX75-KBD24 High-Pressure Wildland Water Pump
To view all documents login to your account
| Application Solutions Portables | Slip-on |
|---|---|
| Certifications | CE |
| Brand | Hale Products |
| Application Solutions | Fire OEMs |
| Performance Application Type | High Pressure, Low Flow |
| Product or Spare Part | Finished Good |
| Impeller | Bronze |
| Priming Option | Manual |
| Weight (Imperial) | 353 lbs |
| Weight (Metric) kg | 160 kg |
| Width (English) | 19.75 inches |
| Width (Metric) | 502 mm |
| Dimensions | Medium |
| Height (English) | 35.5 inches |
| Height (Metric) | 902 mm |
| Length (English) | 34 inches |
| Length (Metric) | 864 mm |
| Engine Power | 24.80 HP |
| Name | Last Modified | |
|---|---|---|
|
Kubota D902 Wiring Diagram 55.46 kB |
2025-03-21 | Download |
