Overview

System display center providing critical pressure governor information,modes and status on a bright sunlight readable full color LCD display.

The heart of the system is the MatrixGOVERNORTM module, providing the engine control algorithms and directly controlling the engine.  Choose from a variety of control options or control from your own J1939 compliant device.  Akron Brass offers the following control options:

  • MatrixCONTROLTM – complete panel-mounted controller with color LCD display and push button control.
  • MatrixSWITCHTM – switch panel for simple operation – increase, decrease, go to preset, change mode and idle engine from switch panel
  • MatrixKNOBTM – throttle control knob.  Use stand alone or with MatrixDISPLAYTM.
  • VMUX Vista interface – Control governor directly from Vista screen

The system is also integrated with Link2 so that pump session data can be recorded and reviewed.  View pump session data, alarms, fault codes and errors on Link2dashboard.com or from your mobile device using the Link2 app.

Features

MatrixDISPLAYTM

  • Displays all the same system information as the 9401 MatrixCONTROL™

  • For use with 9303 MatrixSWITCH™ or 9304 MatrixKNOB™

  • J1939 communication with MatrixGOVERNOR™ module

  • Fully NFPA 1901 compliant display

Akron Brass

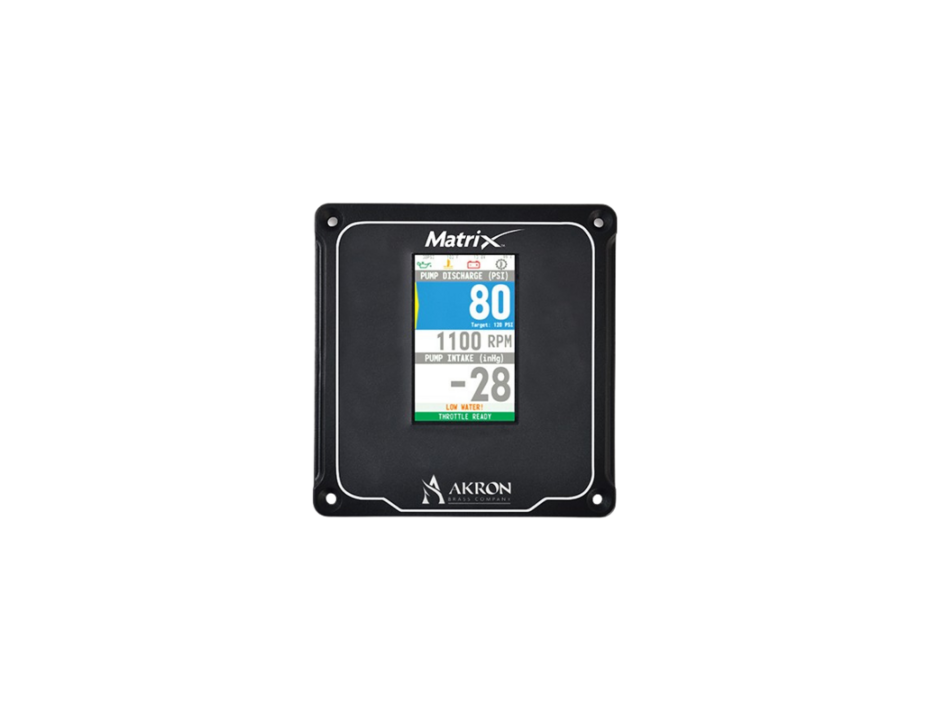

MatrixDISPLAY - Pressure Governor Panel Mount Display only

Product code:
9402
Applications:
Fire OEMs, Firefighting - Structural

Technical details & documents

For the MatrixDISPLAY - Pressure Governor Panel Mount Display only
To view all documents login to your account

Specification
Style 9402
Certifications NFPA 1964
Brand Akron Brass
Application Solutions Fire OEMs, Firefighting - Structural
Volts 10-32VDC
Weight (Imperial) .5 lbs
Weight (Metric) kg 22 kg
Width (English) 4.6''
Width (Metric) TBD
Depth (English) 1.875''
Depth (Metric) TBD
Height (English) 4.75
Height (Metric) TBD
Engine Power $0.00
Bid Specification Template

MatrixDISPLAYTM

An Akron Brass Style 9402 MatrixDISPLAYTM Panel Mount Display shall be provided. The unit must be completely sealed and have dimensions not to exceed 4.6”W x 4.75”H x 1.875”D.  The display shall be a full color LCD display with a backlight and shall be capable of displaying intake pressure, discharge pressure, RPM, target pressure, current operating mode, errors, alerts and warnings, interlock status (throttle ready),  check engine and stop engine warnings, engine status indicators including oil pressure, engine temperature, transmission temperature and voltage. The unit must be fully J1939 compliant and communicate over the J1939 network.  It shall have manual adjustment of the brightness as well as an auto-dimming option. Unit shall be configurable with integrated configuration menus accessible from the MatrixKNOB control.  Display shall include an onboard USB receptacle.  Display software shall also be updateable with a standard USB flash drive.  It shall also be capable of updating the MatrixGOVERNOR module over the J1939 network from the USB flash drive. Unit shall be capable of operating from 10-32VDC.  Unit must carry a five year warranty.
