Overview
The Master Stream Foam Nozzles are designed to increase your fire or vapor suppression effectiveness by optimally enhancing the foams level of air aspiration
Features
- Electrically Actuated Dispersion Jaws
- Lightweight Pyrolite construction
- Expansion rate up to 12:1 with AFFF
- Pressure rated at 145 psi (10 bar)
-Optional 260-520 GPM (1000-2000 LPM) flow at 125 psi (8.6 bar) available

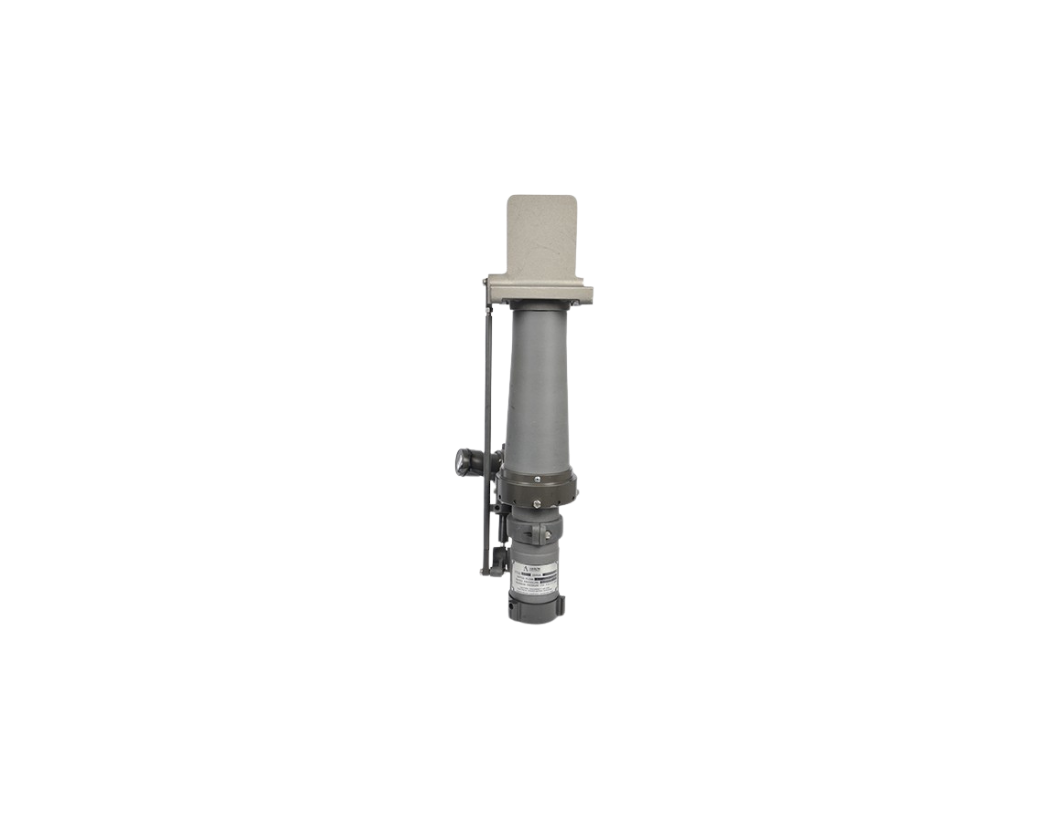

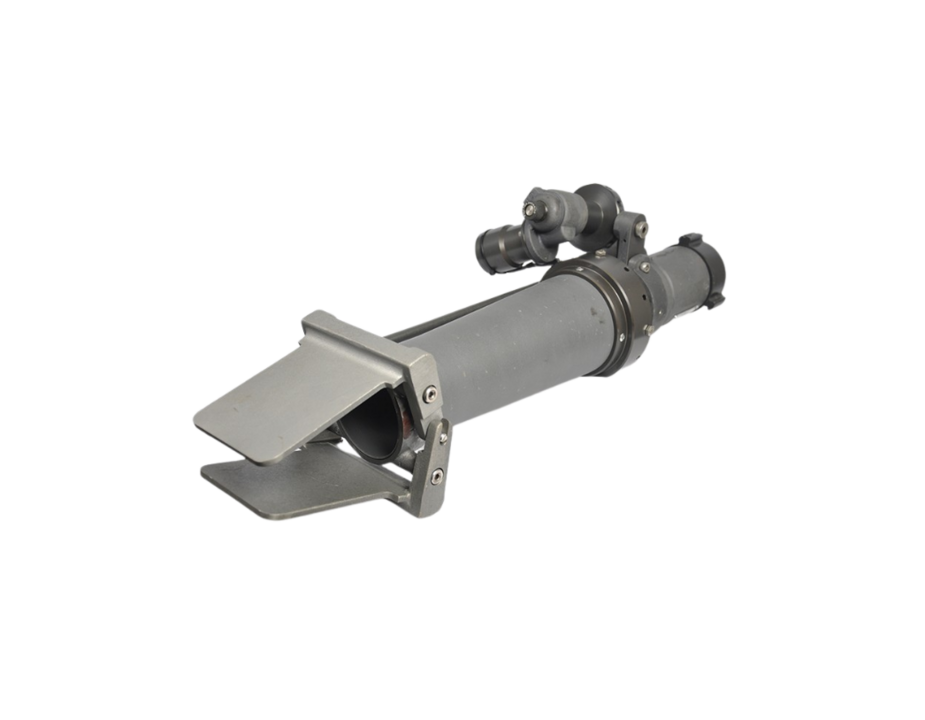

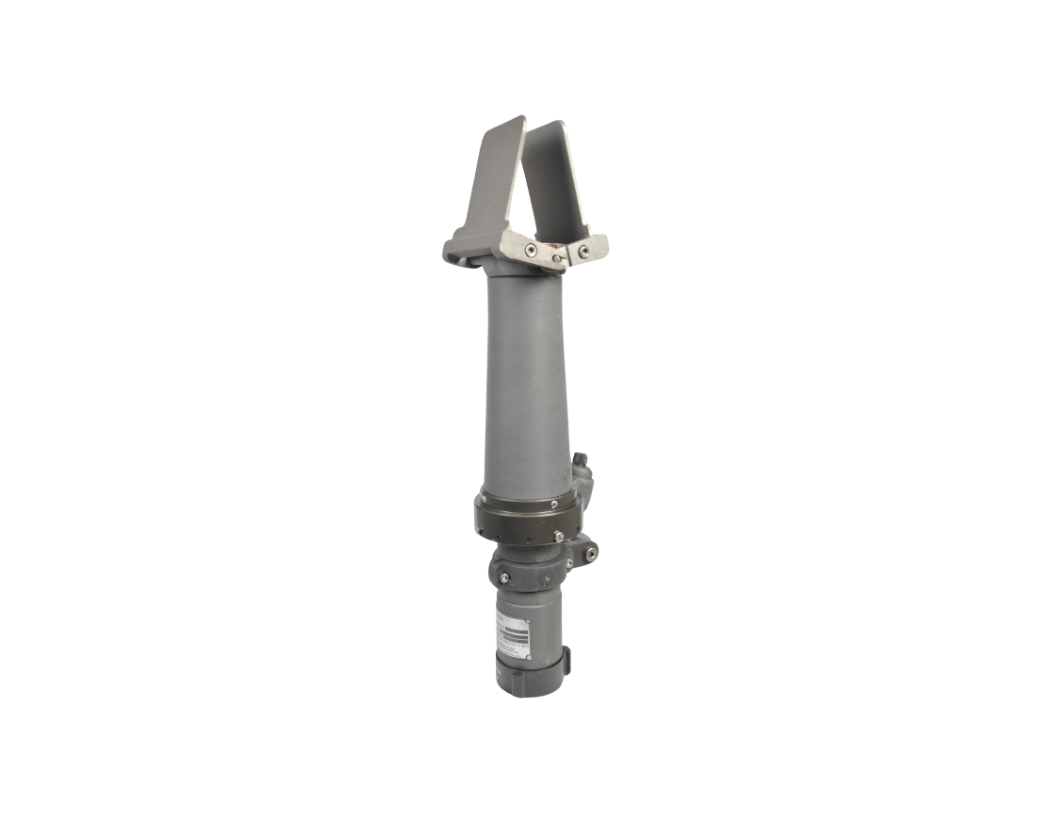

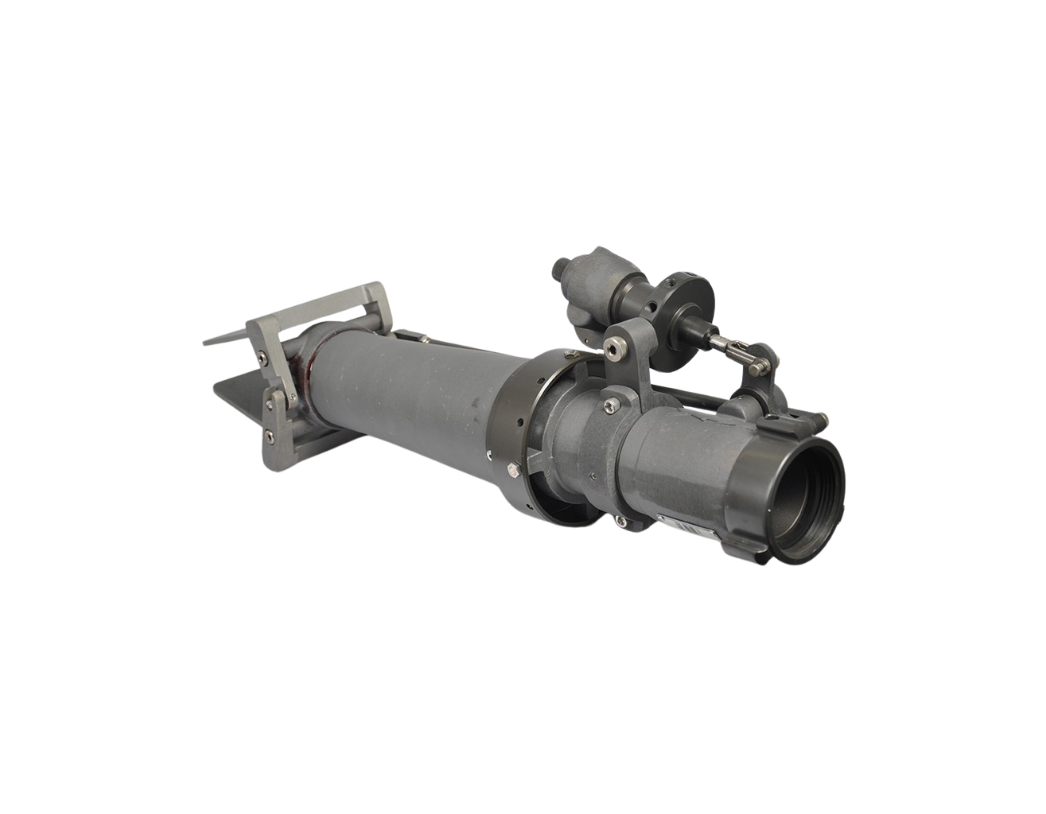

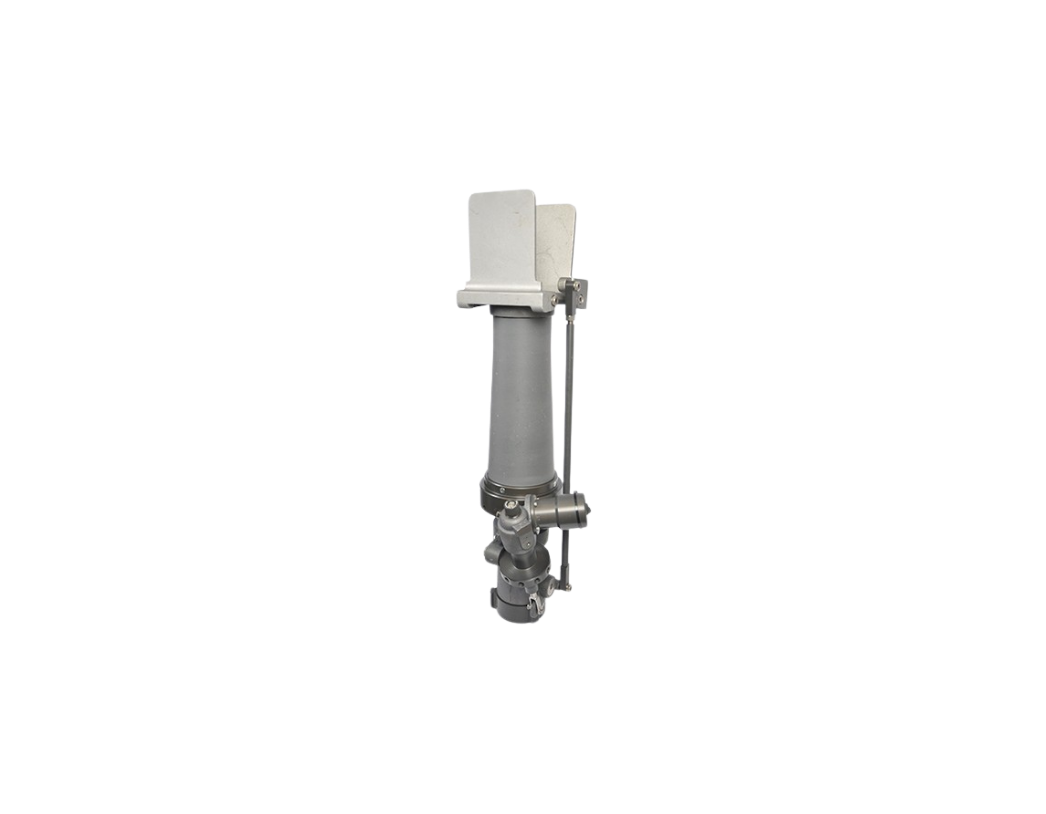

375-750 GPM (1425/2850 LPM) Electric Master Stream Foam Nozzle
Technical details & documents
For the 375-750 GPM (1425/2850 LPM) Electric Master Stream Foam Nozzle
To view all documents login to your account
Specification
| Style | 3623 |
|---|---|
| Family | Foam |
| Brand | Akron Brass |
| Product or Spare Part | Finished Good |
| Swivel Inlet (English) | 2 1/2'' |
| Swivel Inlet (Metric) | 65 mm |
| Weight (Imperial) | 10lb |
| Weight (Metric) kg | 4.5kg |
| Height (English) | 28'' |
| Height (Metric) | 711 mm |
| Engine Power | 0.00 HP |
| Flow GPM | 800 or 1000GPM |
| Flow LPM | 3030 or 3800LPM |
Documents
| Name | Last Modified | |
|---|---|---|
|
Nozzle Order Checklist 290.49 kB |
2019-02-14 | Download |
