Overview

Discontinued effective January 2024

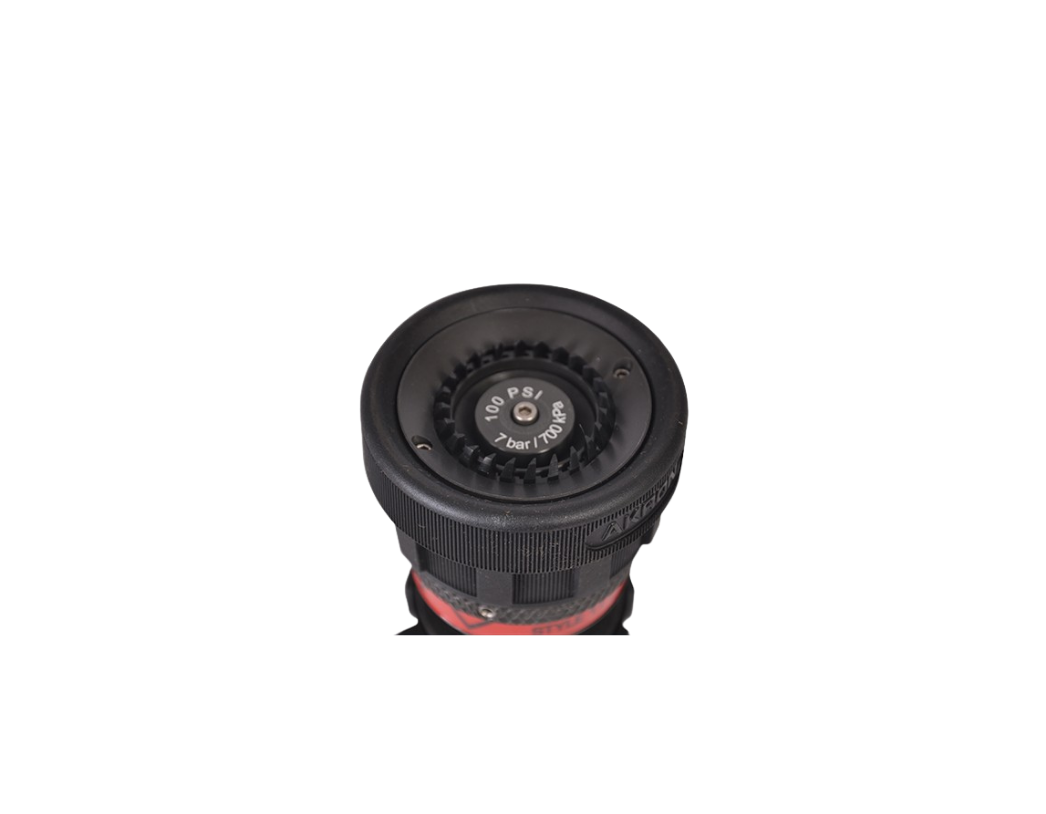

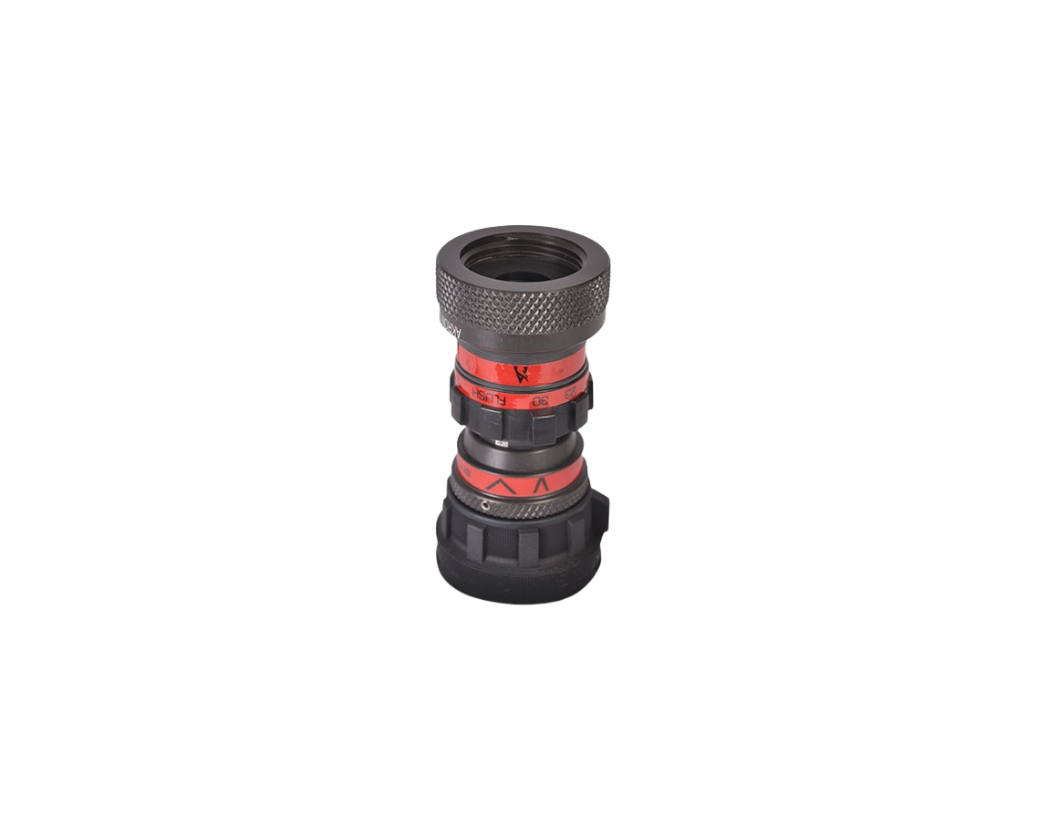

The Turbojet is a constant gallonage nozzle (flow remains the same in all patterns) with multiple flow settings for operator flow control. Use the Turbojet one time and see why it's the nozzle of choice by firefighters worldwide.

Pair with a handline nozzle shutoff and ergonomic pistol grip. Choose from several “snap-on”grip and handle colors to help identify pre-connects and better manage inventory.

Features

Features:
- Pattern Identification
- Larger more legible labels
- Simple to operate (1/4 turn from straight stream to fog)
- Raised lug marks straight stream for limited visibility operations
- Easy to service & repair
- Meets European Standard
- Flow setting at 100 psi (7 bar) operating pressure (230 psi (16 bar) maximum operating pressure)

Akron Brass

Turbojet Tip - DISCONTINUED

View technical documents arrow-right
Product code:
17110500
Applications:
Mining

Technical details & documents

For the Turbojet Tip - DISCONTINUED
To view all documents login to your account

Specification
Style 1711
Certifications NFPA 1964
Family Selectable Gallonage
Brand Akron Brass
Application Solutions Mining
Material Pyrolite
Inventory Type Finished Good
Finish Pyrolite
Swivel Inlet (English) 1 1/2''
Swivel Inlet (Metric) 38 mm
Weight (Imperial) 3 3/4 lbs
Weight (Metric) kg 1.7 kg
Length (English) 6 5/8''
Length (Metric) 14 mm
Engine Power 0.00 HP
Flow GPM 18-30 13-23-30
Flow LPM 70-115 50-90-115
Documents
Name Last Modified

Nozzle Break-Apart Guide 1.10 MB

2019-05-22 Download

Nozzle Order Checklist 290.49 kB

2019-02-14 Download
Bid Specification Template
A Turbojet lightweight fog and straight stream tip Style 1711 with multiple fixed constant gallonage settings of 13-23-30 gpm (50-90-115 lpm) at 100 psi (7 bar) or 18-30 gpm (70-115 lpm) at 100 psi (7 bar) shall be provided. The tip shall have spinning teeth, multiple pattern detents, a rubber bumper with raised lug for pattern identification, and extruded Pyrolite body and sleeve. The tip shall also have a minimum 110° angle at wide fog, a 1.5" (38 mm) swivel inlet, be capable of flushing without shutting down, and must meet all aspects of NFPA 1964 with test results available.
Performance
Documents
Name Last Modified

10 Year Nozzle Warranty Certificate for Pyrolite Saberjet, Assault, Turbojet Nozzles 206.44 kB

2002-04-19 Download

10 Year Nozzle Warranty Certificate for Pyrolite Saberjet, Assault, Turbojet Nozzles 206.44 kB

2002-04-19 Download

Certificate of Conformance to NFPA 1964, 2018 EDITION 40.60 kB

2019-04-17 Download
Installation & Service
Documents
Name Last Modified Sheet #

Style 1711 Parts List (Manufactured after May 2019) 1.79 MB

2021-04-14 Download

Style 9105 Field Service Kit - 1.5" Turbojet Tip" 334.07 kB

2016-09-27 Download
Need assistance with service or installation? Find a dealer near you or contact our Technical Support Team
