Overview

The FireFox Electric Monitor from Akron Brass is a technologically advanced remote controlled monitor with flows up to 500 gpm (1900 lpm). Compatible with a variety of nozzles, choose from nozzle options including fog, dry chemical, smooth bore tip and CAFS nozzles. Find a distributor near you for more information.

Features

The FireFox Monitor is designed to meet various water, foam, CAFs and dry chemical needs. This versatile monitor can be used for wildland firefighting, mini pumpers, crash truck turrets, deicing, fixed site facilities, arena protection and many other unique applications.

- 320° horizontal travel with adjustable stops at ± 90°
- 135° vertical travel (+90° to -45° and -20°)

Monitor Options: (must specify)
- Automatic oscillation and stow
- Remote 2'' or 21/2'' electric valve
- 12 or 24 volt (24 volt CE version available)
- 2'' quick disconnect
- Position feedback

Nozzle Options:
-Fog nozzle adjustable or fixed flow baffle up to 500 gpm (1900 lpm)
-Flat dispersed pattern option (available for any fog nozzle)
-Dry chemical nozzle
-Foam tubes
-Smooth bore tip with mini-shaper

Akron Brass

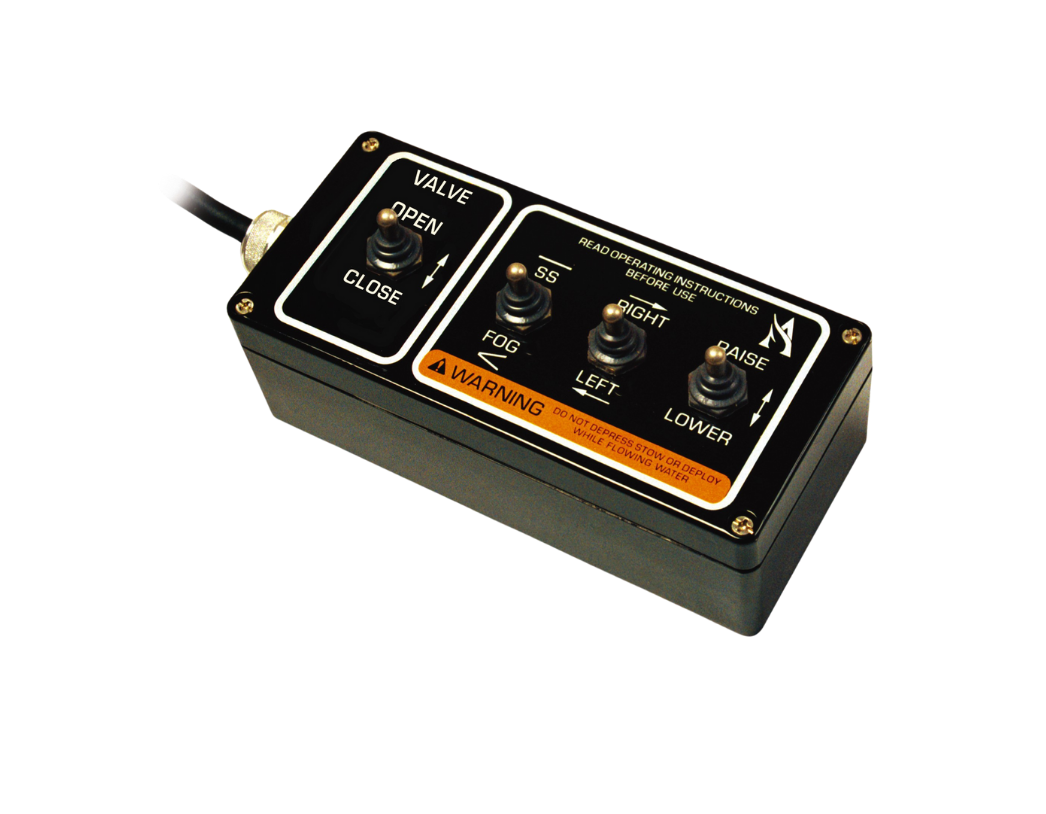

FireFox Electric Monitor - 2" NPT x 1.5" NH Monitor and Logic Box

Product code:
34630006

Technical details & documents

For the FireFox Electric Monitor - 2" NPT x 1.5" NH Monitor and Logic Box
To view all documents login to your account

Specification
Style 3463
Family Electrical
Brand Akron Brass
Material Pyrolite
Product or Spare Part Finished Good
Inlet (English) 2" NPT,2 1/2" NPT,1 1/2" FL,3" FL
Inlet (Metric) 50 mm,65 mm,38 mm,75 mm
Outlet (English) 1 1/2" NH,2 1/2" NH
Outlet (Metric) 38 mm,65 mm
Weight (Imperial) 25 lbs
Weight (Metric) kg 11.3 kg
Width (English) 11"
Width (Metric) 279 mm
Depth (English) 11 1/2"
Depth (Metric) 292 mm
Height (English) 11 3/4"
Height (Metric) 298 mm
Engine Power 0.00 HP
Flow GPM 500
Drawings
Documents
Name Last Modified
Installation & Service
Documents
Name Last Modified

Style 3463 Parts List - Firefox 2.61 MB

2019-03-02 Download

Style 3463 Parts List - Quick Action Valve 1.50 MB

2014-01-09 Download
