Overview

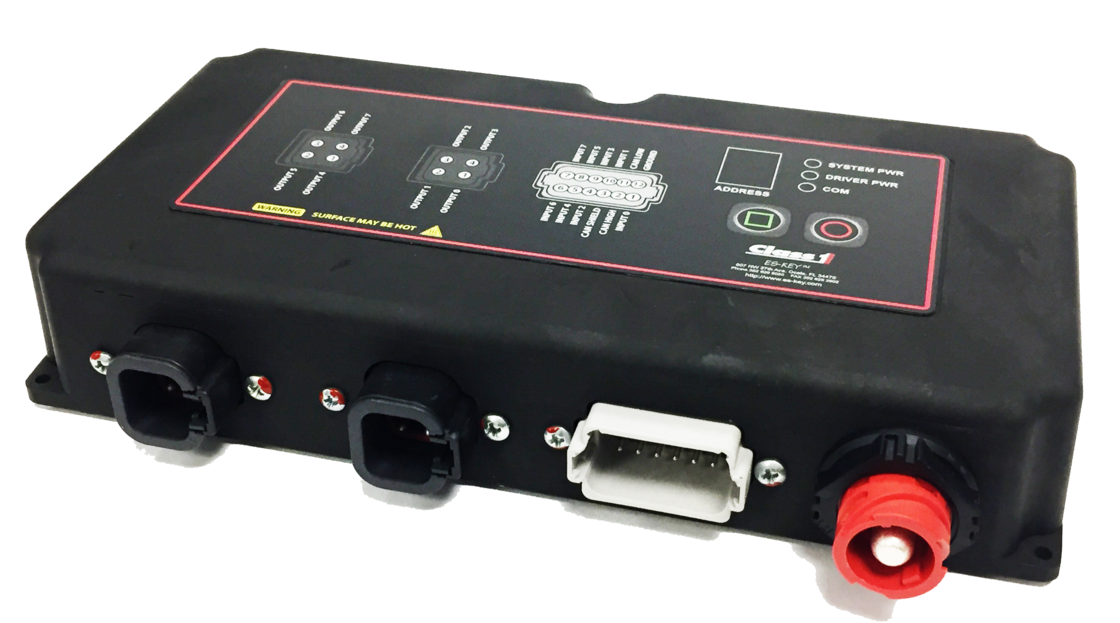

The High Current PDM (p/n 610-00046) is a Class 1 ES-KeyTM module with 8 high current positive outputs, 4 selectable polarity inputs designed for use within an ES-Key electrical system network, and 4 “MFI” (Multi-Function Inputs).

Typical product uses:
High current node for V-Mux network Control Lightbars High load fans All high inductive loads  High current network distribution node

Features

The 4 inputs are polarity selectable inputs and the 4 inputs that have analog capability (0-5volt, 0-30volt, 4-20mA, Thermistor, and Frequency). Input 7 also has the ability to be reconfigured to a voltage reference output that is selectable between 5 volt and 9 volt.
Weldon

HC-PDM WITH MFI INPUTS

Price: $1,436.00
View technical documents arrow-right
Product code:
610-00046-001
Applications:
Emergency Responder OEMs

Technical details & documents

For the HC-PDM WITH MFI INPUTS
To view all documents login to your account

Specification
Can Specification SAE J1939 proprietary, 250 Kbits/second
Brand Weldon
Application Solutions Emergency Responder OEMs
Product or Spare Part Finished Good
Environmental Range IP 67
Temperature Range (Metric) -40C ... +85C
Volts +9 VDC ... +32 VDC
Weight (Imperial) 55.7oz
Weight (Metric) kg 1579.1g
Width (English) 10.313"
Width (Metric) 261.94mm
Height (English) 6.625"
Height (Metric) 168.28mm
Amperage 73 mA (13.8 VDC) / 82 mA (27.6 VDC)
Engine Power 0.00 HP
Bid Specification Template

Electrical protection

  • Internal thermal fuse (2500mA on pin 1 of black 12-pin connector)
  • CAN bus protected for heavy duty trucks (24V)
  • Transient voltage protected to SAE J1113 specification for heavy duty trucks (24V)
  • Load dump voltage protected to SAE J1113 specification for heavy duty trucks (24V)

Electrical performance

  • Immunity to Radiated Electromagnetic Fields– Bulk Current Injection (BCI) method, Class C device SAE J1113-4
  • Reverse voltage protection on power leads (pins 1 and 12 of black 12-pin connector), Class C device ISO 16750-2
  • Overvoltage due to failing generator, Class A device ISO 16750-2
  • Immunity to conducted transients on power leads, L4 requirements (24V) SAE J1113-11
  • Immunity to Electrostatic Discharge – powered and unpowered modes SAE J1113-13
  • Immunity to radiated electromagnetic fields, Class C device SAE J1113-21
  • Conducted emission on power leads (Class 3 average and Class 5 peak limits) CISPR 25
  • Radiated emissions, absorber-lined shielded enclosure (Class 1 average and Class 3 peak limits) CISPR 25
  • Reset behavior on voltage drop 24V, Class C device ISO 16750-2

Environmental performance

  • Thermal shock SAE J1455 (sec 4.1.3.2)
  • Exposure to humidity MIL-STD-810F (method 507.4)
  • Thermal shock due to splash Class 1 (STD-0001)
  • Pressure cleaning SAE J1455 (sec 4.3)
  • Exposure to salt spray atmosphere/fog SAE J1455 (sec 4.3)
  • Exposure to splash due to chemicals and oils SAE J1455 (sec 4.4)
  • Exposure to outdoor UV ISO 4892-2 (method A)

Mechanical performance

  • Resonance dwell SAE J1455 (sec 4.9.4.1)
  • Random vibration SAE J1455 (sec 4.9.4.2)
  • Mechanical shock SAE J1455 (sec 4.10.3.4)
