The module has 5 outputs of which 2 of the outputs can be polarity selectable the module also has 3 polarity selectable inputs of which one can be configured as an analog input or frequency. The module having the ability to also work as a network controlled H-bridge module.

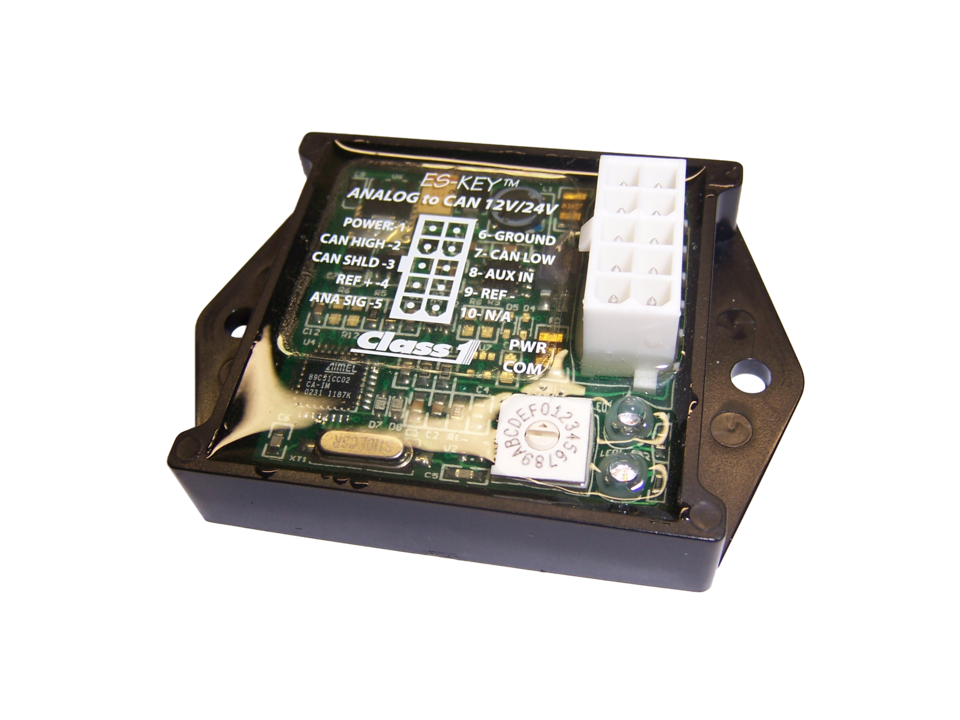

ES-KEY H-BRIDGE MODULE
- Product code:
- 610-00041
- Applications:
- Emergency Responder OEMs
Technical details & documents
For the ES-KEY H-BRIDGE MODULE
To view all documents login to your account
| Can Specification | SAE J1939 proprietary, 250 Kbits/second |
|---|---|
| Brand | Weldon |
| Application Solutions | Emergency Responder OEMs |
| Product or Spare Part | Finished Good |
| Environmental Range | IP 67 |
| Temperature Range (Metric) | -40C ... +85C |
| Volts | +9 VDC ... +32 VDC |
| Width (English) | 3.5" |
| Width (Metric) | 88.90mm |
| Depth (English) | 0.88" |
| Depth (Metric) | 22.35mm |
| Height (English) | 2.096" |
| Height (Metric) | 53.24mm |
| Amperage | 30 mA (13.8 VDC) / 50 mA (27.6 VDC) |
| Engine Power | 0.00 HP |
Electrical protection
- Internal thermal fuse
- Reverse voltage protection (pins 1 and 12 of connector)
- CAN buses protected to 24V
- ESD voltage protected to SAE J1113 specification
- Transient voltage protected to SAE J1113 specification for heavy duty trucks (24V)
- Load dump voltage protected to SAE J1113 specification for heavy duty trucks (24V)
