Overview

Designed for flows from 250 to 1250 gpm (950-4800 lpm) - At 80 psi (5.5 bar) operating pressure
-Built-in stream shaper

Features

Designed for flows from 250 to 1250 gpm (950-4800 lpm) - At 80 psi (5.5 bar) operating pressure
-Built-in stream shaper
- Pyrolite Nozzle
- Manual Pattern Control
- 250-1250 gpm (950-4800 lpm) flow; 250 - 1000 gpm (950-3800 lpm) optional flow
- 2 1/2" or 3 1/2" (65 or 89 mm) Inlet
- No Teeth
- 9 1/2" (241 mm) Long
- 12 lbs. (26.8 kg)

Akron Brass

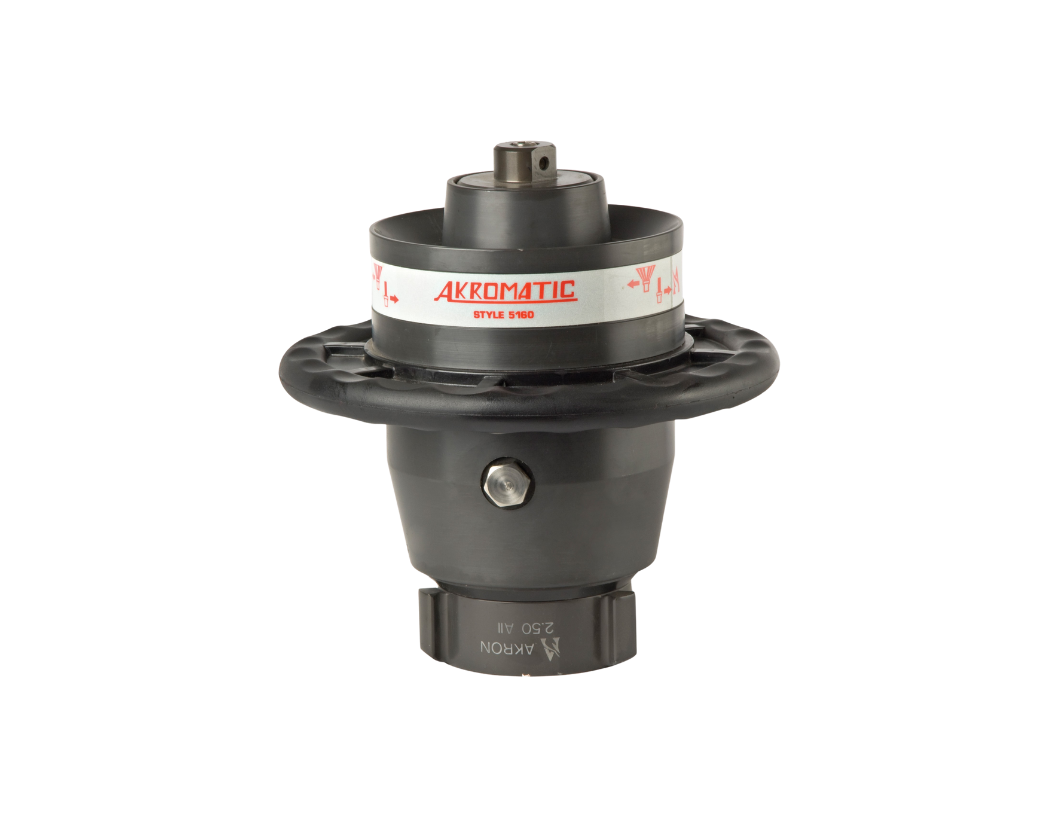

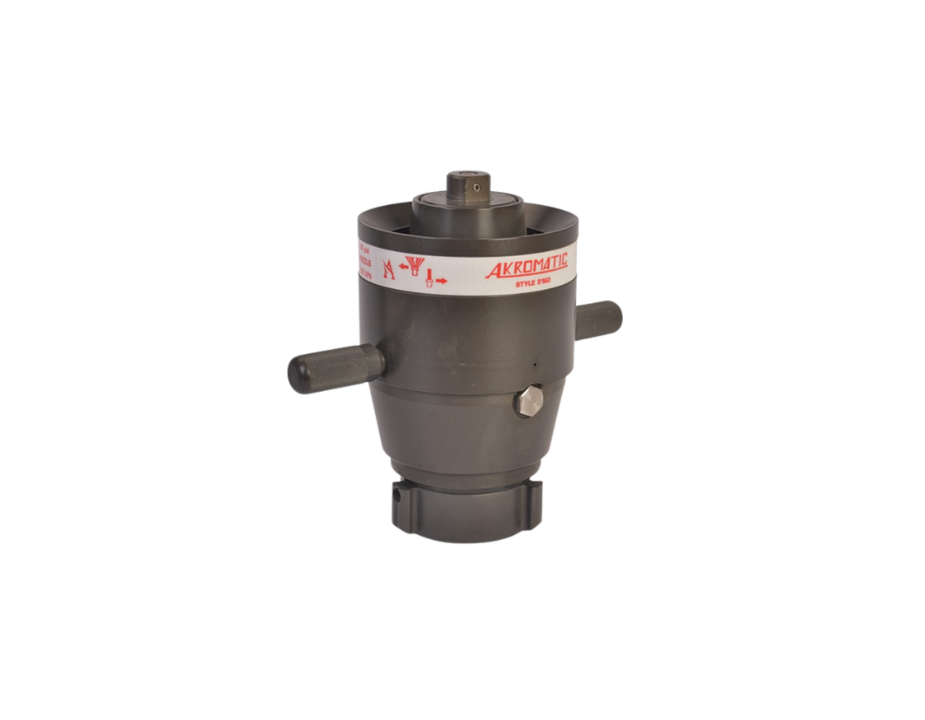

Akromatic 1250 Master Stream Nozzle

Product code:
51600004
Applications:
Fire OEMs

Technical details & documents

For the Akromatic 1250 Master Stream Nozzle
To view all documents login to your account

Specification
Style 5160
Certifications NFPA 1964
Family Master Stream
Brand Akron Brass
Application Solutions Fire OEMs
Material Pyrolite
Finish Pyrolite
Swivel Inlet (English) 2.5'' or 3.5''
Swivel Inlet (Metric) 65 or 89 mm
Weight (Imperial) 12 lbs
Weight (Metric) kg 5.4 kg
Length (English) 9 1/2''
Length (Metric) 241 mm
Engine Power $0.00
Flow GPM 250-1250 GPM
Flow LPM 950-4800 LPM
Bid Specification Template

Akromatic 1250 Master Stream Nozzle Specifications

Combination fog and straight stream master stream nozzle with automatic flow mechanism that provides a flow range of either 250 to
1000 gpm or 250 to 1250 gpm at 80 psi. The nozzle shall be constructed of durable, lightweight Pyrolite.

Drawings
Documents
Name Last Modified

Style 5160 2.5" Drawing (stp)" 731.99 kB

Download

Style 5160 3.5" Drawing (stp)" 672.22 kB

Download
Installation & Service
Documents
Name Last Modified Sheet #

Style 4822, 4823, 4825 & 4826 Parts List - Mfg. May 2007 - June 2019 393.19 kB

2017-06-20 Download

Style 5160 Akromatic - Parts List 668.00 kB

2019-08-12 Download

Style 7840 Handwheel Installation Instructions - Swing-Out Valve 68.99 kB

2016-08-10 Download

Style 7875 Slo-Cloz - Installation & Operational Instructions 77.38 kB

2016-08-10 Download
Software/Multimedia
Documents
Name Last Modified

Nozzle Monitor Compatibility Chart for Municipal Montiors 465.21 kB

2014-12-12 Download
