Overview
The Akrofoam nozzles are self-educting master stream nozzles designed for educting foam at flow rates up to 2000 gpm (7600 lmp).
Features
- Spring loaded baffle that allows flow setting selection of 750, 1000, 1500, or 2000 gpm (2900, 3800, 5700, or 7600 lpm) with a simple push and turn of the baffle head
- Quick connect, adjustable metering head with pick up rates 1%, 3% and 6% for 750 and 1000 gpm (2900 and 3800 lpm) and 1% & 3% for 1500 and 2000 gpm (5700 and 7600 lpm)
- Orifices store conveniently on the nozzle for easy change of pickup rate and storage when not in use
- 3-1/2" NH inlet
- NFPA 1901 and 1964
- Operating pressure -100 psi (7 bars)
- Maximum Operating - 200 psi (13.8 bars)
- Weight - 17.4 lbs (8 kg)

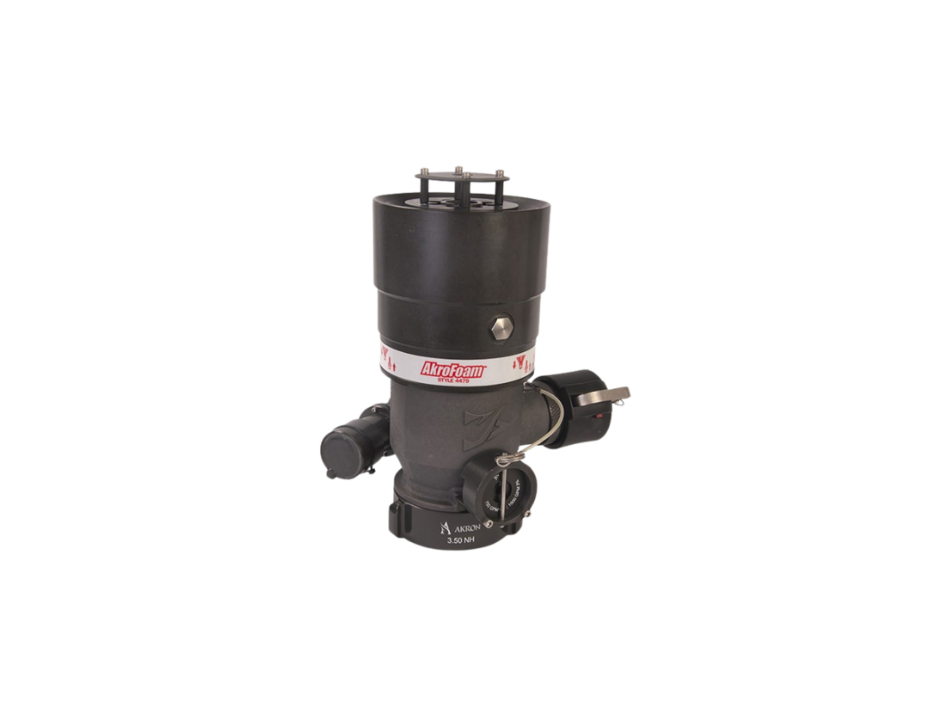

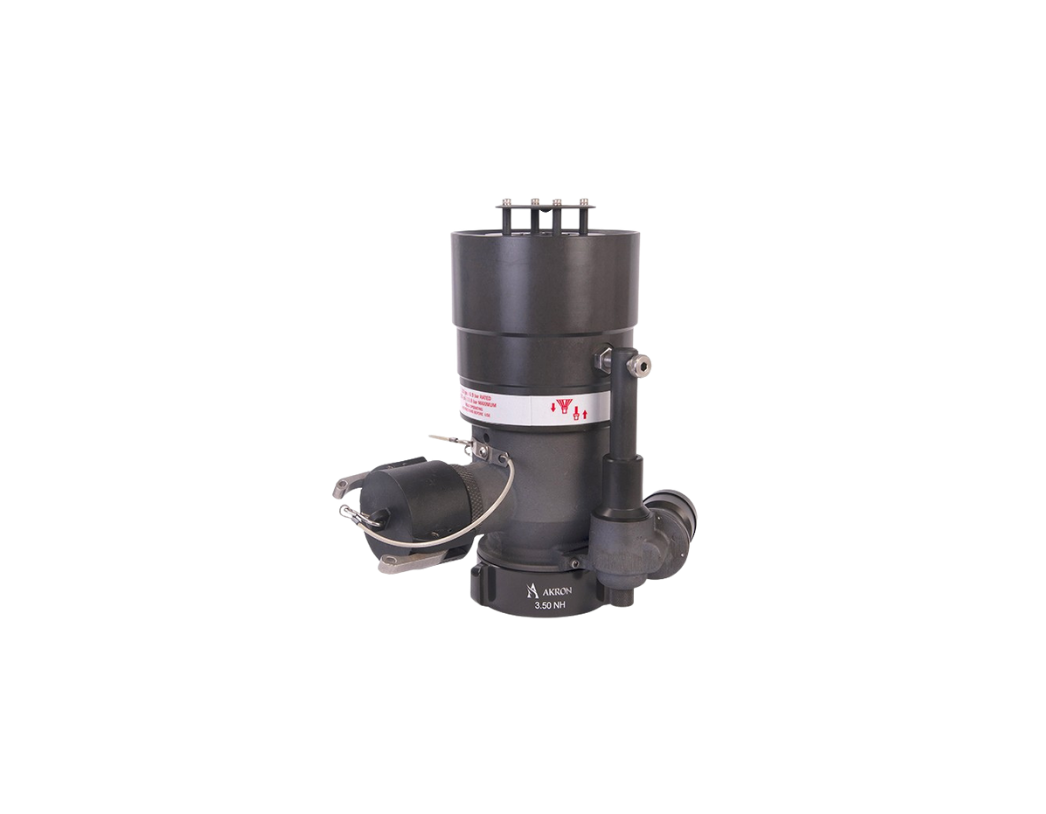

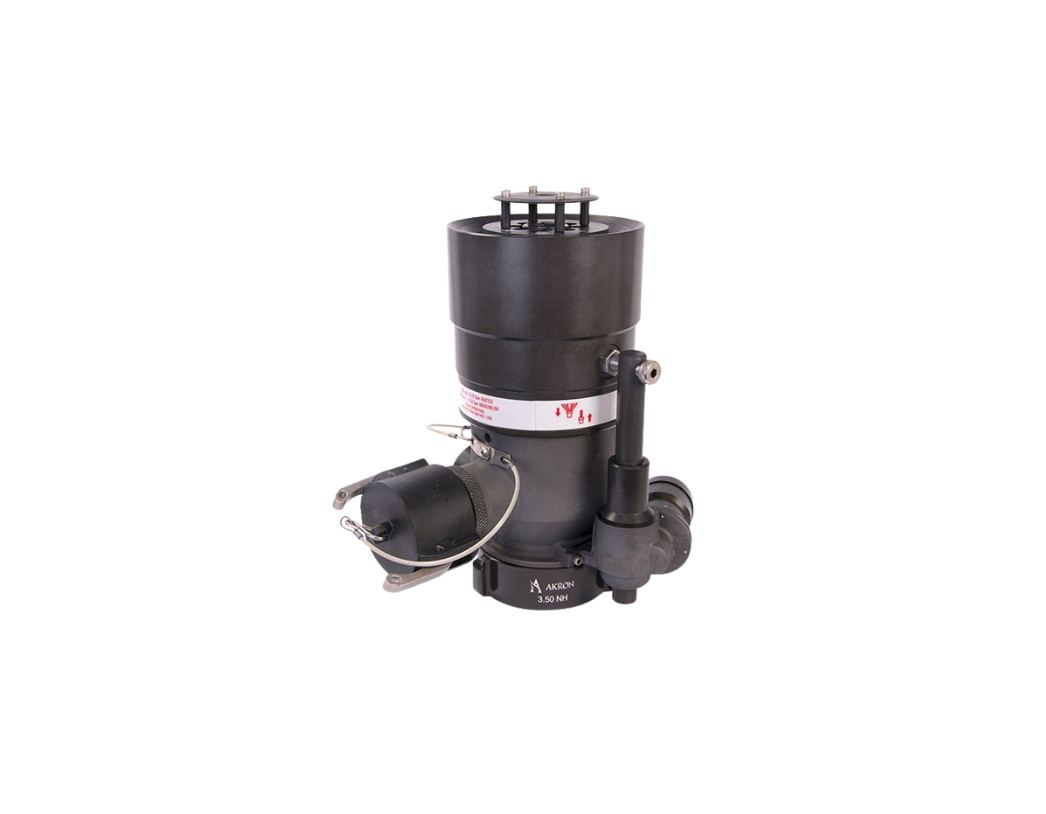

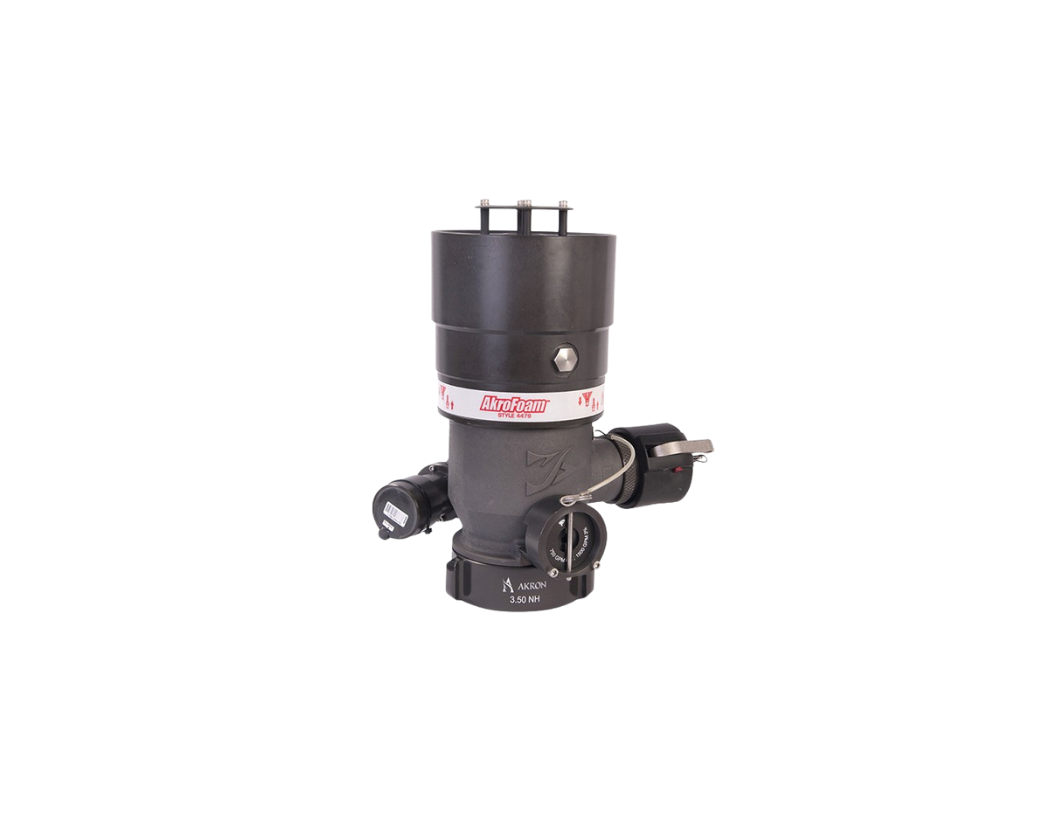

Akrofoam 2000 GPM Pyrolite Nozzle with Electric Pattern Actuation
Technical details & documents
For the Akrofoam 2000 GPM Pyrolite Nozzle with Electric Pattern Actuation
To view all documents login to your account
Specification
| Style | 4479 |
|---|---|
| Certifications | NFPA 1964 |
| Brand | Akron Brass |
| Inlet (English) | 3-1/2" |
| Swivel Inlet (English) | 3-1/2" |
| Weight (Imperial) | 17.4 lbs |
| Weight (Metric) kg | 8 kg |
| Width (English) | 10" |
| Width (Metric) | 254 mm |
| Height (English) | 13-3/4" |
| Height (Metric) | 350 mm |
| Length (English) | 6-5/16" |
| Length (Metric) | 160 mm |
