Overview

Akron Municipal Eductors feature a large, easy-to-read, and removable metering dial with settings between 0% and 6%. The Eductors are rated to flow at 200 psi (14 bar) inlet pressure and work effectively with nozzles rated from 50 to 100 psi (3 to 7 bar).

Features

  • Large, easy to read, and removable metering dial with settings between 0% and 6%.
  • Detents at 1/4, 1/2, 1, 3 and 6%
  • Rated to 95 gpm (360 lpm) at 200 psi (14 bar) inlet pressure
  • Works effectively with nozzles rated from 50 to 100 psi (3 to 7 bar)
  • 1 1/2" (38 mm) or 2 1/2" (65 mm) swivel inlet x 1 1/2" (38mm) male
  • 30" pickup hose standard on 95 gpm (360 lpm) eductors, 48" Hose optional
  • NH thread





Akron Brass

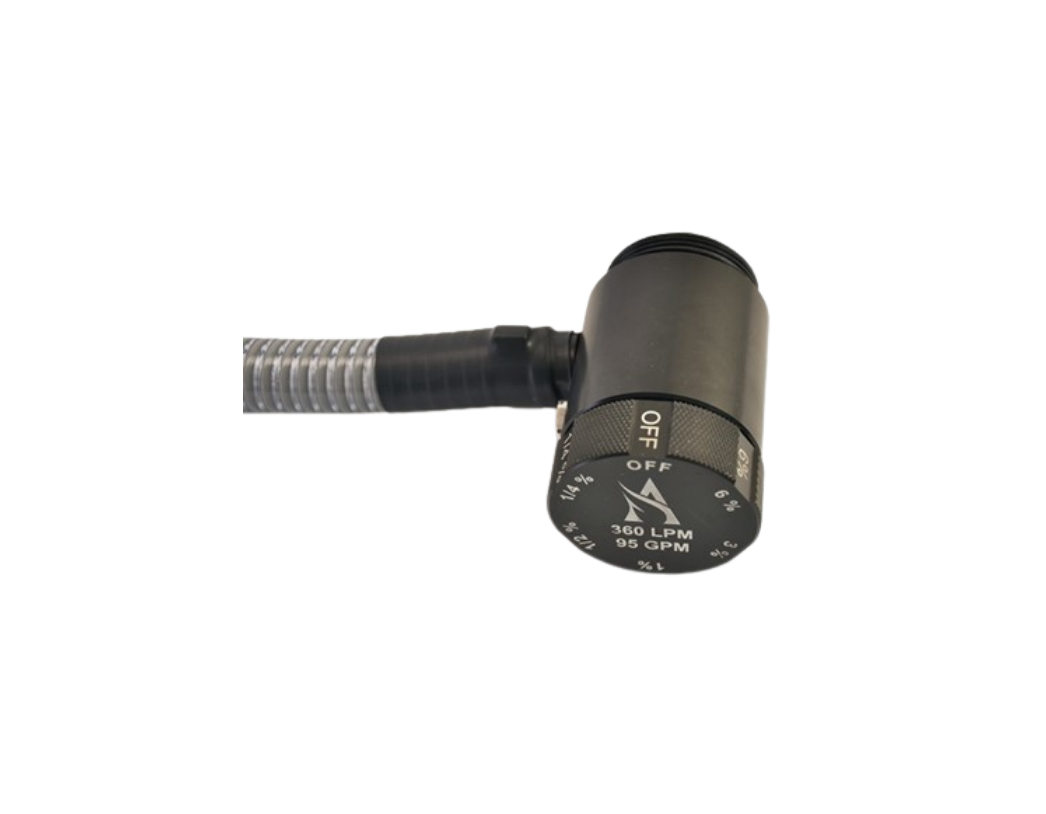

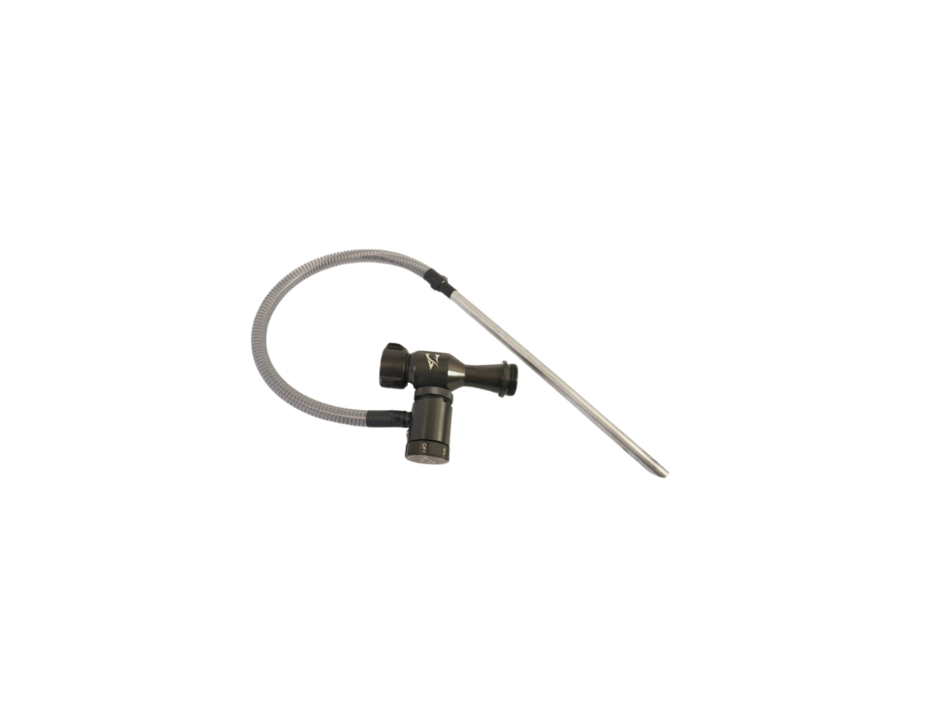

95 GPM Pyrolite® In-Line Eductor, NH Thread

Price: $2,062.00
Product code:
30951001
Availability:

Available | Delivery in 5 Days

Technical details & documents

For the 95 GPM Pyrolite® In-Line Eductor, NH Thread
To view all documents login to your account

Specification
Style 3095
Family Eductors
Brand Akron Brass
Material Pyrolite
