Overview
Features
Features of this foam eductor include:
Akron Municipal Eductors feature a large, easy to read, and removable metering dial with settings between 0% and 6%. The Eductors are rated to flow at 200 psi (14 bar) inlet pressure and work effectively with nozzles rated from 50 to 100 psi (3 to 7 bar).
- 1 1/2" (38 mm) or 2 1/2" (65 mm) swivel inlet x 1 1/2" (38mm) male
- 30" pickup hose standard on 60 gpm (230 lpm) eductors, 48" hose optional

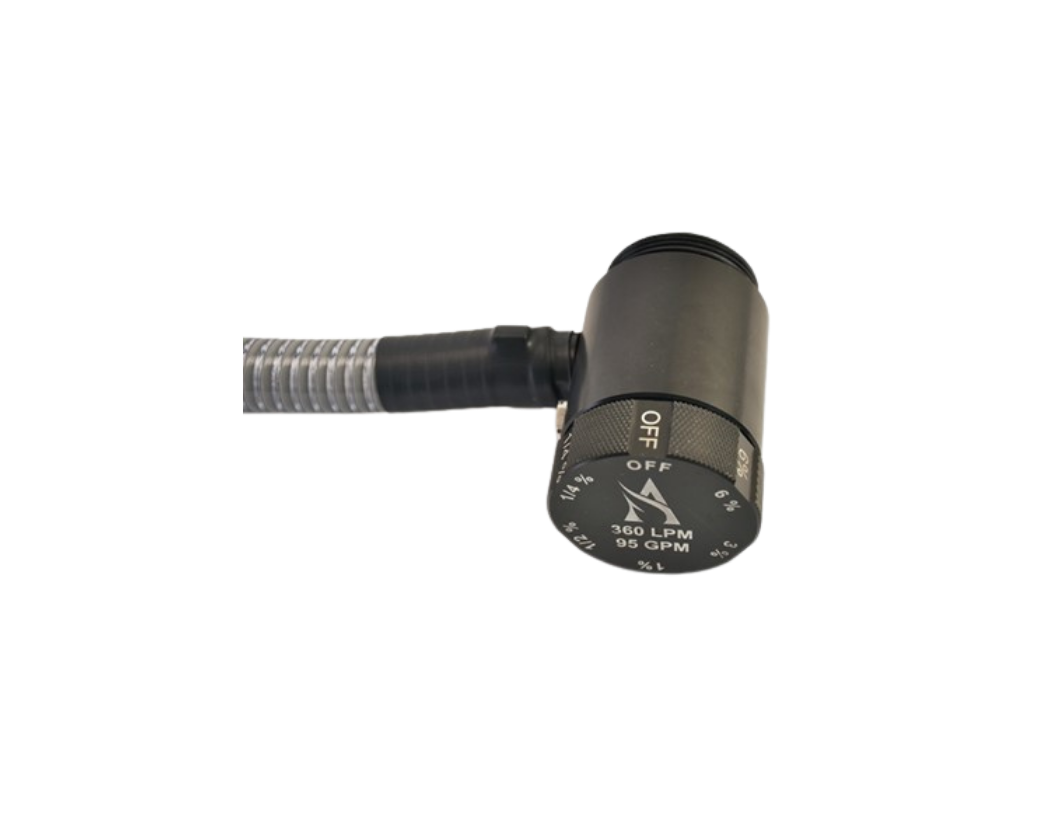

60 GPM Pyrolite In-Line Foam Eductor
Technical details & documents
For the 60 GPM Pyrolite In-Line Foam Eductor
To view all documents login to your account
| Style | 3060 |
|---|---|
| Family | Eductors |
| Brand | Akron Brass |
| Product or Spare Part | Finished Good |
| NFPA 1960 2024 Compliant | No |
| Engine Power | 0.00 HP |
| Name | Last Modified | |
|---|---|---|
|
3060, 3095, 3125 & 3071 Inline Eductor Parts List 529.43 kB |
2025-04-03 | Download |
|
Style 3060, 3095 & 3125 Parts List - In-Line Eductors (Mfg before Oct 1999, obsolete) 100.10 kB |
2025-04-03 | Download |
|
Style 3060, 3096, 3126 Parts List - In-Line Eductors (Mfg after Oct 1999 & before Feb 2016, obsolete) 82.14 kB |
2025-04-03 | Download |
|
Style 3060, 3095, 3125 Parts List 811.34 kB |
2025-04-28 | Download |
