Overview

Diamondback LED perimeter warning lamps provide unmatched directional visibility, fully customizable flash patterns, unique LED and lens color configurations and automotive grade materials in a high performance, sustainable, and attractive design

Features

-Exceeds industry requirements -High-impact polycarbonate lens with scratch and haze resistant hard coating -Surface mount design utilizes only two screw holes and a wire exit hole in mounting surface -Integral molded mounting pad -Four wire hookup (power, ground, sync, and secondary enable) -Optional chrome plated trim bezel with injection molded pad -12 and 24V operation -Fully ruggedized and highly efficient electronics Lamp Configuration: -Independently controlled LED segments (pairs) allow for unmatched flash pattern options -Styling flexibility through use of colored and clear optical elements -Rapid delivery on custom LED and lens color configurations as well as Deutsch sealed wire connectors (not all available options are shown on this site, download configuration sheet and call your dealer or Akron Brass / Weldon sales rep for more information) -Diamondback lamps flash patterns are completely configurable via wireless (IR)& download to the light head from the 0N60-2508-00 programming tool
Weldon

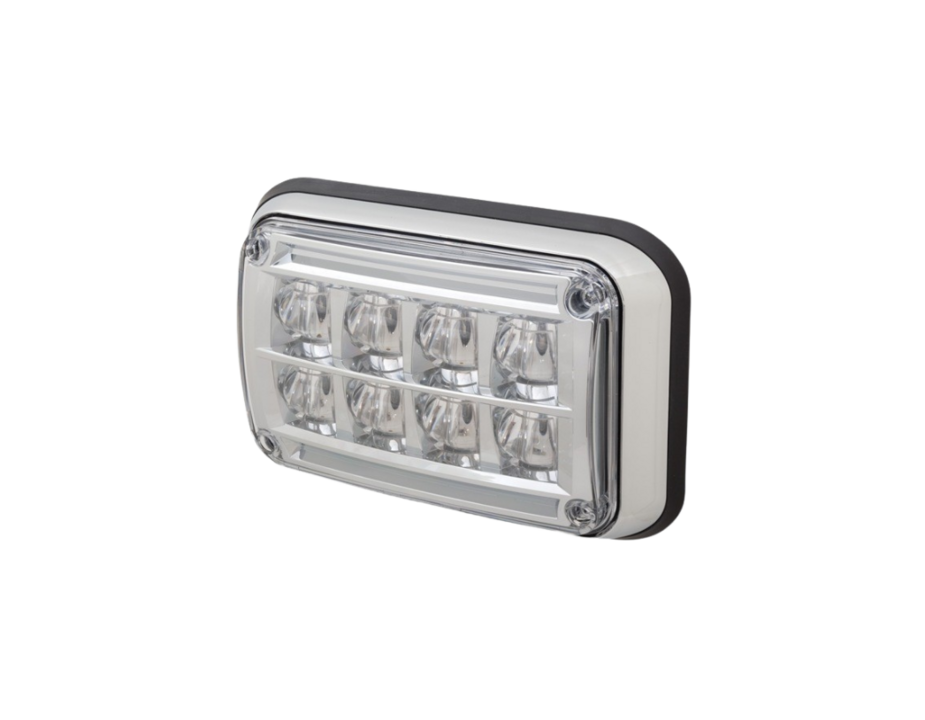

4x6 Diamondback LED Warning Lamp Head, White LEDs, Clear Optics, Clear Lens

View technical documents arrow-right
Product code:
V46W-C00W

Technical details & documents

For the 4x6 Diamondback LED Warning Lamp Head, White LEDs, Clear Optics, Clear Lens
To view all documents login to your account

Specification
Style V46W-C00W
Brand Weldon
Product or Spare Part Finished Good
Volts 10-32VDC
Warranty 5 year
wattage 11
Width (English) 6.57 in
Width (Metric) 166.9 mm
Depth (English) 1.43 in
Depth (Metric) 36.3 mm
Height (English) 4.21 in
Height (Metric) 106.9 mm
Amperage 0.92
Engine Power 0.00 HP
Lamp Size 4''x6''
Lamp Source LED
Bid Specification Template
Available in 2"x6", 3"x4", 3"x7", 4"x6", & 7"x9" -Independently controlled LED segments allow for unmatched flash pattern options (left/right, up/down, x-pattern, chasing, and many more) -Unmatched styling flexibility through the use of colored and colorless optical elements -Lamp is completely reconfigurable via wireless download without removing lens or lamp from vehicle
