Overview
The ultimate CAFS nozzle, the SaberJet is truly multi-purpose. The Dual Shutoff (DSO) allows you to flow both solid bore and fog stream at the same time.
Available with:
- 1-1/8” or 29 mm smooth bore tip
- 2-½” or 1-½” swivel inlet
Patent #6,877,676
Features
- Operates at pressures from 50-100psi, allowing you to reduce firefighter fatigue or opt for maximum flow
- Fog flow at 100psi (7 bar): 135 GPM (510 LPM)
- Comes with pistol grip
- Compatible with Quick-Attack Foam Tube Style 793

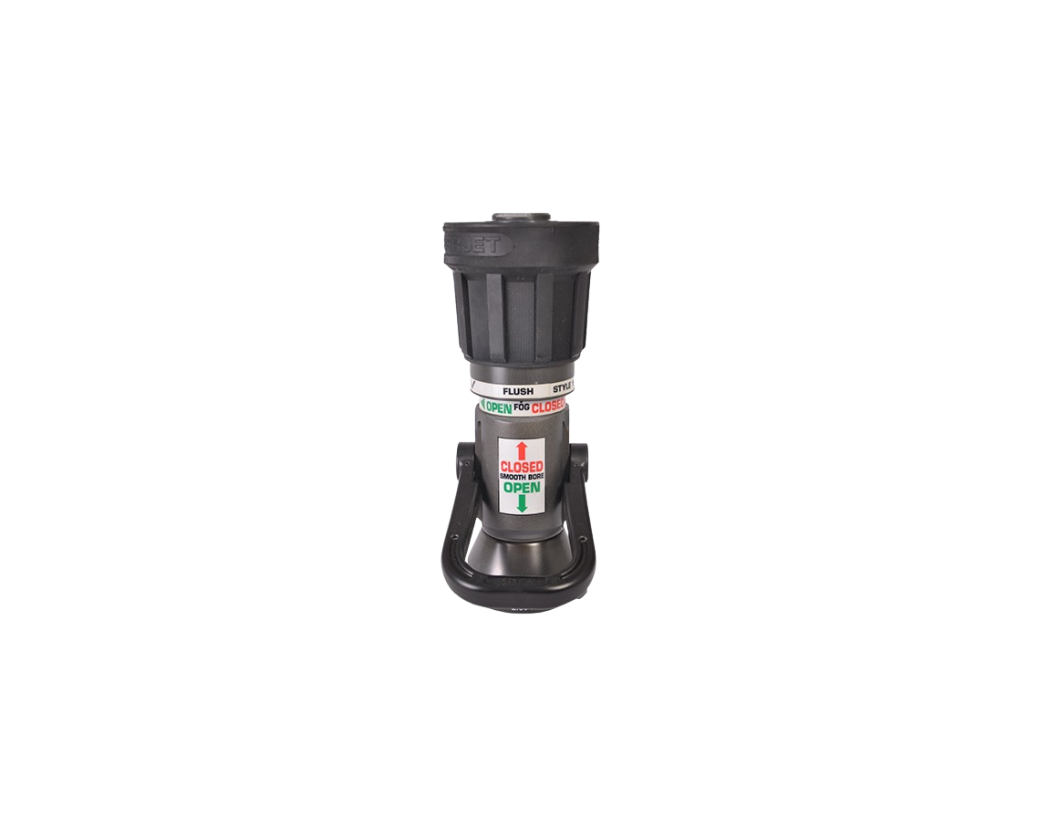

High-Range SaberJet Fire Nozzle with Pistol Grip (DSO)
Technical details & documents
For the High-Range SaberJet Fire Nozzle with Pistol Grip (DSO)
To view all documents login to your account
Specification
| Style | 1528 |
|---|---|
| Certifications | NFPA 1964 |
| Family | Combination Fog/Smooth Bore |
| Brand | Akron Brass |
| Material | Pyrolite |
| Product or Spare Part | Finished Good |
| Finish | Pyrolite |
| Swivel Inlet (English) | 2 1/2'' or 1 1/2'' |
| Swivel Inlet (Metric) | 65 mm or 38 mm |
| Teeth | Plastic Spinning |
| Weight (Imperial) | 6 1/2 lbs |
| Weight (Metric) kg | 2.9 kg |
| Width (English) | 4 1/2" |
| Width (Metric) | 114 mm |
| Height (English) | 8 3/4" |
| Height (Metric) | 222 mm |
| Length (English) | 11 5/8'' |
| Length (Metric) | 295 mm |
| Engine Power | 0.00 HP |
Bid Specification Template
Akron Brass Style 1528 Dual Shut-off SaberJet Nozzle Specification:
A combination solid stream and fog nozzle with the capability to flow either stream independently or simultaneously. The solid bore shall have field changeable tips with orifice size of 1-1/8", and the fog shall flow 135 gpm @ 100 psi or 510 lpm @ 7 bar. The nozzle shall have a pistol grip, spinning teeth, multiple pattern detents, flush without shutting down, twist shutoff of the fog stream, and a full time swivel inlet. The bale shutoff of the smooth bore shall be with dual drive trunnions. The nozzle shall also be constructed of lightweight Pyrolite, have a shutoff ball with flow diversion for the fog waterway, have a 10 year warranty and meet NFPA 1964.
Performance
Installation & Service
Documents
| Name | Last Modified | |
|---|---|---|
|
Style 1523 & 1528 Parts List - mfg. after May 2019 1.44 MB |
2019-02-05 | Download |
Need assistance with service or installation? Find a dealer
near you or contact our Technical Support Team
