Overview
The Mid-Range Assault nozzle combines quality stream performance at a variety of pressures with the simplicity of a fixed orifice.
Buy now or find a distributor near you to learn more about this and other Akron Brass fixed gallonage nozzles.
NOTE: Nozzle will be shipped with removable pistol grip.
Features
Performance Details
Powerful Streams
- Excellent stream performance at pressures as low as 50 psi
- Quarter turn from straight stream to wide fog
Easy to Maintain & Train
- No re-calibration required
- Raised lug marks straight stream for limited visibility operations
- Improved handle with extra room for 1-3/4" hose
- New snap-on color clips for pistol grip and shutoff handle
- Tough, black nozzle body hard coat
- Pattern Identification
- Larger easy to read labels
Options
- Comes with removable Pistol Grip
- Compatible with Quick-Attack Foam Tube Style 796
- Replacement for style 4862 Assault nozzle
Technical Specifications
- 1 1/2" (38 mm) full-time Swivel Inlet standard
- 9" (222 mm) long
- 4.25 lbs. (1.9 kg)

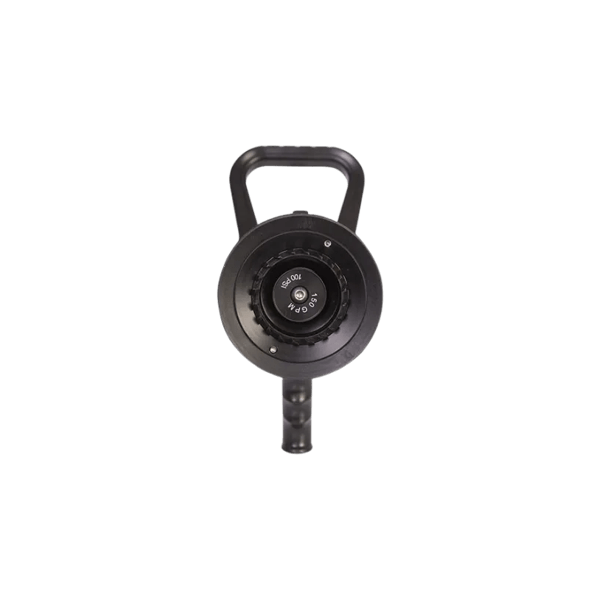

Mid-Range Assault Handline Nozzle with 1.5" inlet, NH thread, 150 GPM @75 PSI
- Product code:
- 48634008
- Availability:
-
Available
- Applications:
- Equipment and Tank Washing
Technical details & documents
For the Mid-Range Assault Handline Nozzle with 1.5" inlet, NH thread, 150 GPM @75 PSI
To view all documents login to your account
| Style | 4863 |
|---|---|
| Certifications | NFPA 1964, Factory Mutual System (FM) |
| Family | Fixed Orifice |
| Brand | Akron Brass |
| Application Solutions | Equipment and Tank Washing |
| Material | Pyrolite |
| Product or Spare Part | Finished Good |
| Finish | Pyrolite |
| Orifice Standard | 1.5'' |
| Swivel Inlet (English) | 1 1/2'' |
| Swivel Inlet (Metric) | 38 mm |
| Weight (Imperial) | 4 lbs |
| Weight (Metric) kg | 1.9 kg |
| Length (English) | 9'' |
| Length (Metric) | 222 mm |
| Engine Power | 0.00 HP |
| Flow GPM | 150 GPM |
| Name | Last Modified | |
|---|---|---|
|
Style 4863 Parts List - mfg. after May 2019 1.43 MB |
2025-04-03 | Download |
|
Style 4862 and 4863 Parts List 231.25 kB |
2025-04-03 | Download |
| Name | Last Modified | |
|---|---|---|
|
Nozzle Refresh 2019 Overview Guide for Distributors 2.75 MB |
2025-02-20 | Download |
