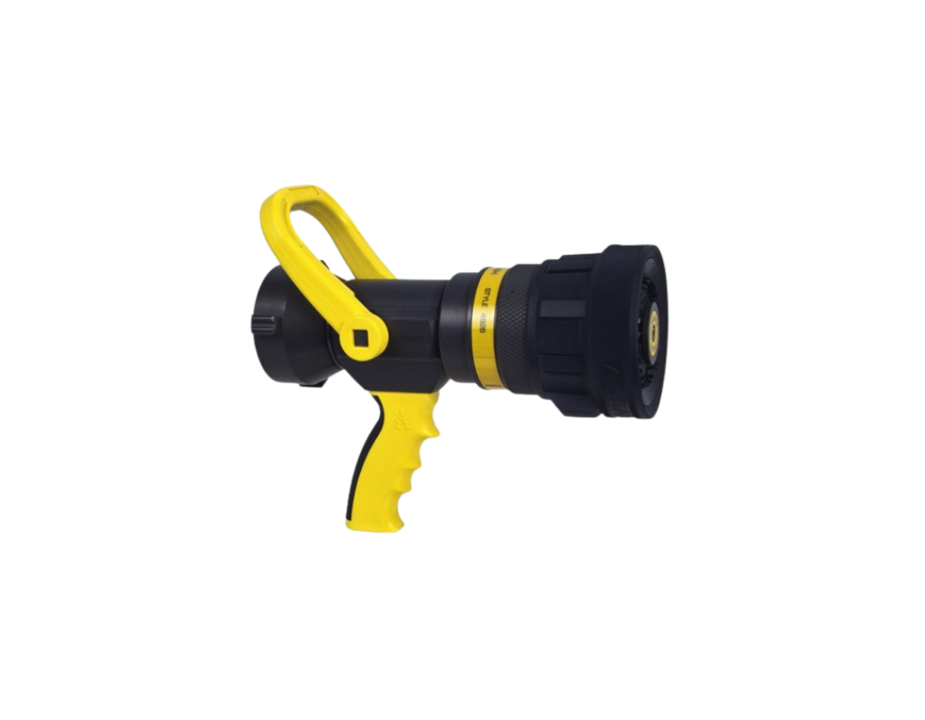

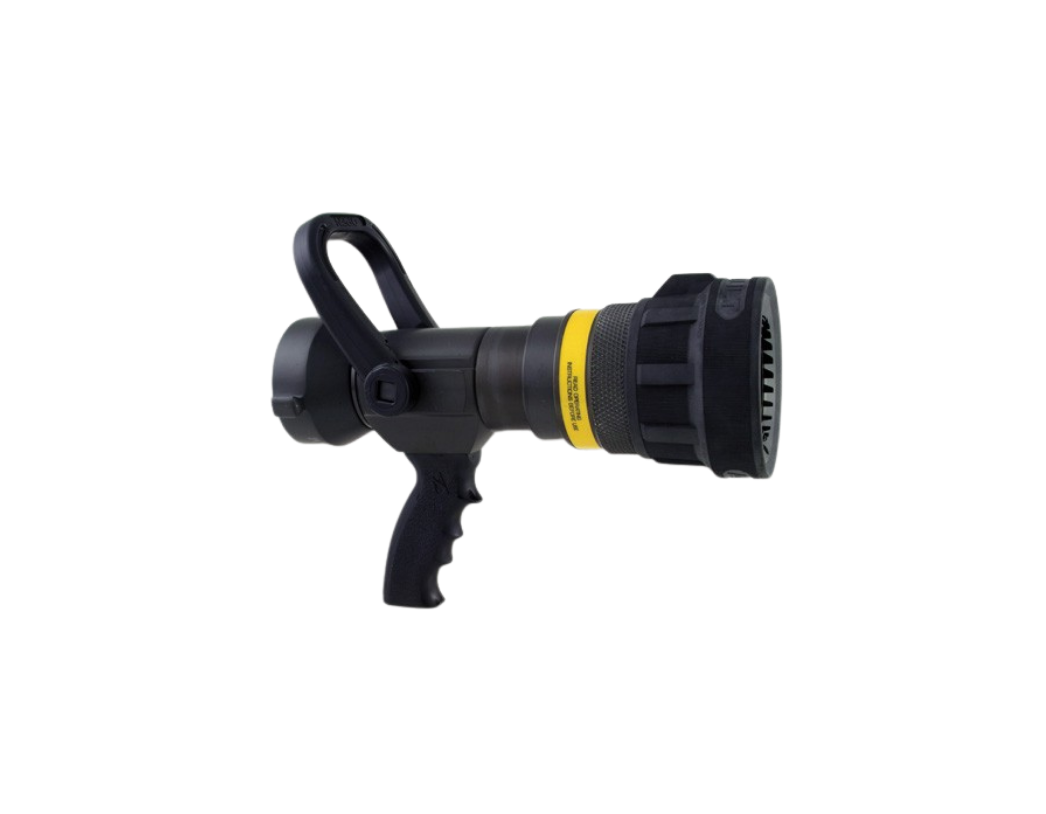

2 1/2'' High Range Assault Nozzle with or without Pistol Grip

Features

The Assault High Range nozzle provides:

- Quality stream performance at pressures as low as 50 PSI
- Affordably priced
- Simplified nozzle training
- No recalibration required
- Low maintenance due to simple, durable design

Features:

- Pattern Identification
- Enhanced flow characteristics with a deeper throat design
- Easy to read labels
- Easy to operate (1/4 turn from straight stream to fog)
- Raised lug marks straight stream for limited visibility operations
- Easy to service & repair
- Specific models FM approved (contact Akron Brass for more information)
- Quick change pattern adjustment
- Specify Pressure and Flow
- Nozzle is standard with Pistol Grip and Spinning Teeth
- Swivel 1-1/2" (38 mm) & 2-1/2" (65 mm) Inlet, also available with ZT (Zero Torque)
- 12-1/8" (206 mm) Long
- 7-5/8 lbs. (3.5 kg)

Applications/Solutions

• Equipment and Tank Washing
• Fire OEMs
• Firefighting - Airport (ARFF)
• Firefighting - Industrial
• Firefighting - Structural
• Firefighting - Wildland Forestry

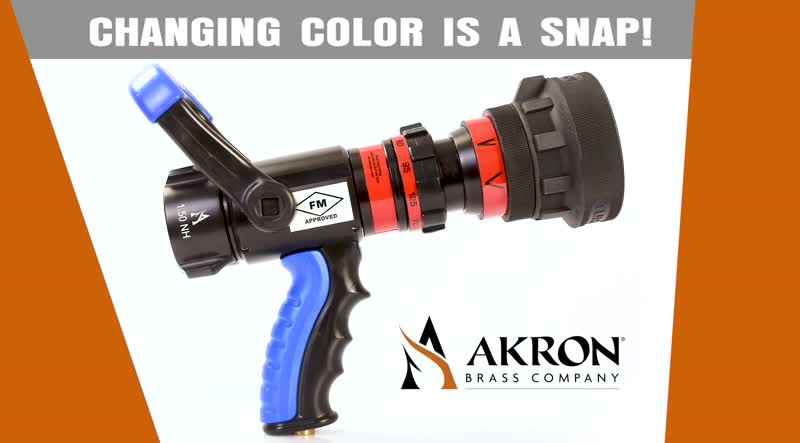

2 1/2'' High Range Assault Nozzle with or without Pistol Grip Video

Specifications

Style	4826
Certification(ss)
Warranty
Weight	7 5/8 lbs (3.5 kg)
Type	Fixed Orifice
Material	Pyrolite
Brand	Assault
Swivel Inlet	2 1/2'' (65 mm)
Length	12 1/8'' (206 mm)
Flow (GPM)	200, 250, 300, 350 @ 100 PSI -- 200, 250, 300 @ 75 PSI -- 210, 250 @ 50 PSI
Flow (LPM)	750, 950, 1140, 1325 @ 7 BAR -- 750, 950, 1140 @ 5 BAR -- 795, 950 @ 3.5 BAR

Performance Content

Contact Us with Questions

Name	Type
10 Year Nozzle Warranty Certificate for Pyrolite Saberjet, Assault, Turbojet Nozzles
Flow / Reach Data for Assault Nozzles Rated at 75 Psi
National Fire Protection Association (NFPA) Certificate for Assault Nozzles
Flow / Reach Data for Assault nozzles rated at 100 psi
FM Certificate of Compliance for 1702, 1720, 1733, 1763, 4802, 4820, 4823, 4826, & 4837 & 2171, 2199, 5071 & 5099
