Stop & Tail, Single V-LED, 7" Round, Red Lens

Sustainable LED Stop/Tail Lamp

The 1017 Series LED Stop/Tail, Turn and Backup Lamps are revolutionary, DOT
compliant lamps that combine advanced electronics plus a conventional idea of
serviceable parts. Designed for long-term service, these eco-friendly lamps allow
the lens to be changed or to upgrade LED’s; eliminating the need to replace the
entire light should a part be damaged thus reducing landfill waste. Further, the 1017
Series was designed with Weldon’s commitment to global environmental awareness
by reducing hazardous chemicals such as lead in the manufacturing process.

Be the first to review this product

Starting at $43.07 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep
Availability: Now shipping within 4 weeks. Exclusions may apply
Availability refers to the estimated time to ship the item in standard configuration, from Akron Brass' facility. Non-standard threads and quantities in excess of 10 may require longer ship dates. Total delivery time is subject to carrier selection and distance to destination. All shipping estimates are subject to change without notice.
Contact one of our authorized distributors for a competitive price quote and faster ship times.

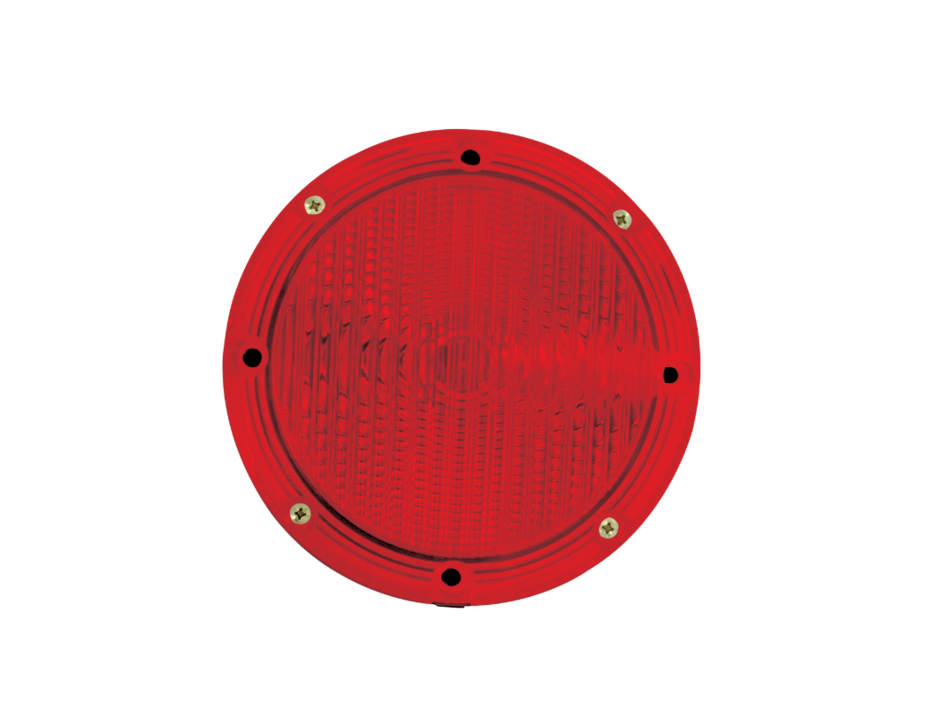

Stop & Tail, Single V-LED, 7"  Round, Red Lens

Double click on above image to view full picture

Zoom Out
Zoom In

More Views


Designed for long-term service and low lifecycle costs, Weldon's 1017-9000 Series delivers the benefits of Weldon's patented V-LED technology in a sustainable package. It is the industry's only serviceable, maintainable, and upgradable stop, tail, turn, and backup light. It is loaded with value-added features that reduce maintenance expenses and vehicle downtime, while enhancing signaling and visibility through optimized light control. Some of the key features/benefits include:

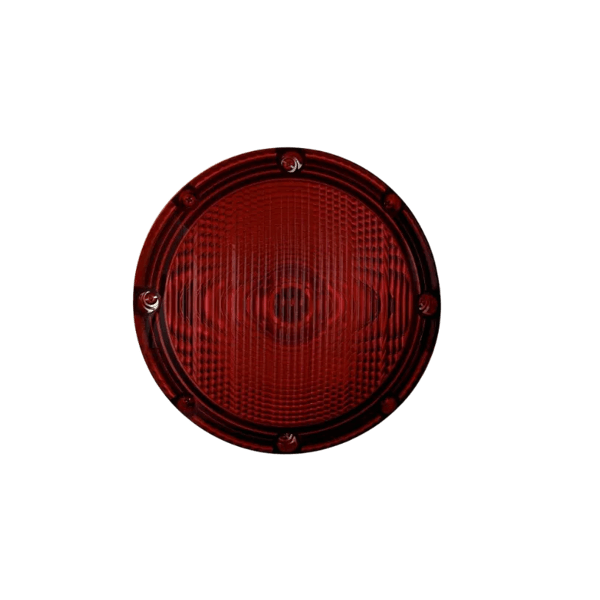

  • Replaceable cover lens serviceable on the vehicle

  • Upgradeable V-LED

  • Single V-LED design

  • Dual lens seal protects circuitry should exterior lens be damaged

  • Low power consumption/amperage draw

  • 5 year warranty


Style 1017-9000-10
Type Stop/Tail Lamp
Depth 2.07 in (52.4 mm)
Diameter 7 in (178 mm)
Carton Quantity 12
Wattage 7.2/0.6
Volts 10-16VDC
Amperage 0.60/0.05

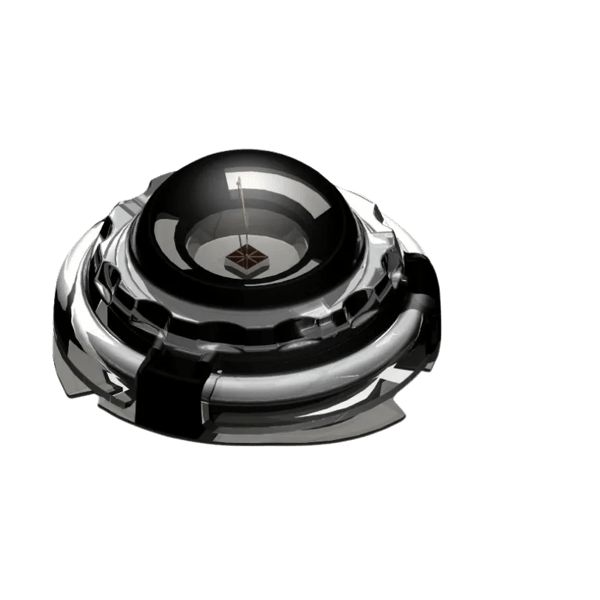

Weldon’s LED Lamps utilize worldwide patented V-LED Light Emitting Diodes. The V-LED’s thread mounted design provides the most efficient thermal management in the industry, allowing extraordinary brightness and signaling power with the lowest current draw. As an invaluable added benefit, the V-LED diodes are field upgradable as future LED technologies emerge.

Access Drawings for Engineers

Contact Us with Questions

Name Type
c_1017-9000 View File

Installation and Service Documents

Contact Us with Questions

Name Sheet #

Performance Content

Contact Us with Questions

Name Type

Software Updates and Downloads

Contact Us with Questions

Type Description Instructions Version Updated File

Product Updates and Media Files

Description Type Size
View File Style 1017-9000 Series Flyer View File 817 KB
