6204-0024-00

Seat Belt Indicator Ambulance with Analog Dim

The Seat Belt Warning System is the newest product in addressing your safety needs. Designed to alert the driver, this module will indicate when restraints of occupied seats are properly fastened keeping personnel safe. This system meets NFPA 1917 requirements for your ambulance. Simple and reliable, the Seat Belt Warning System is based on the patented and proven V-MUX® multiplexing technology.

Be the first to review this product

Starting at $603.22 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep
Availability: Now shipping within 4 weeks. Exclusions may apply
Availability refers to the estimated time to ship the item in standard configuration, from Akron Brass' facility. Non-standard threads and quantities in excess of 10 may require longer ship dates. Total delivery time is subject to carrier selection and distance to destination. All shipping estimates are subject to change without notice.
Contact one of our authorized distributors for a competitive price quote and faster ship times.

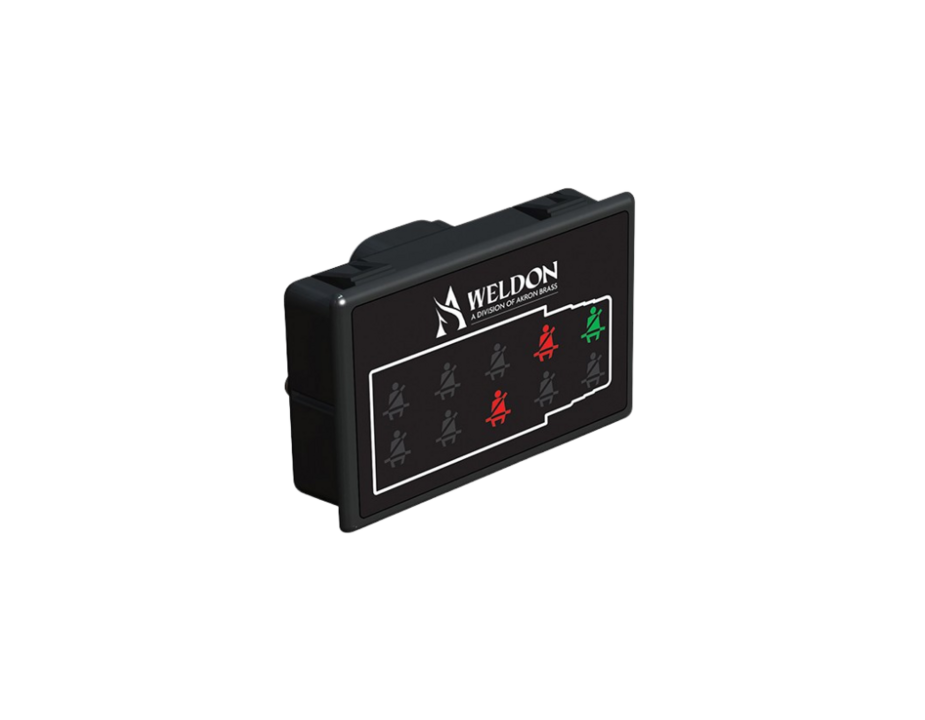

Seat Belt Indicator Ambulance with Analog Dim

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

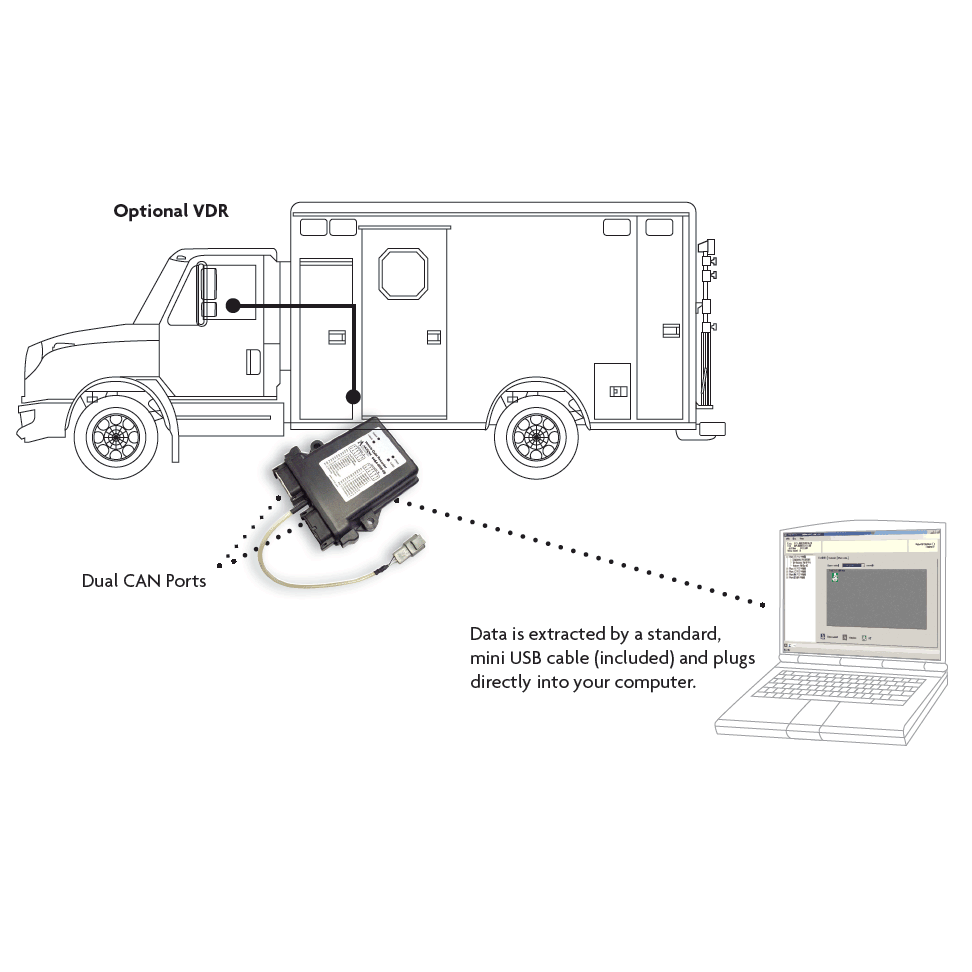

  • Optional VDR

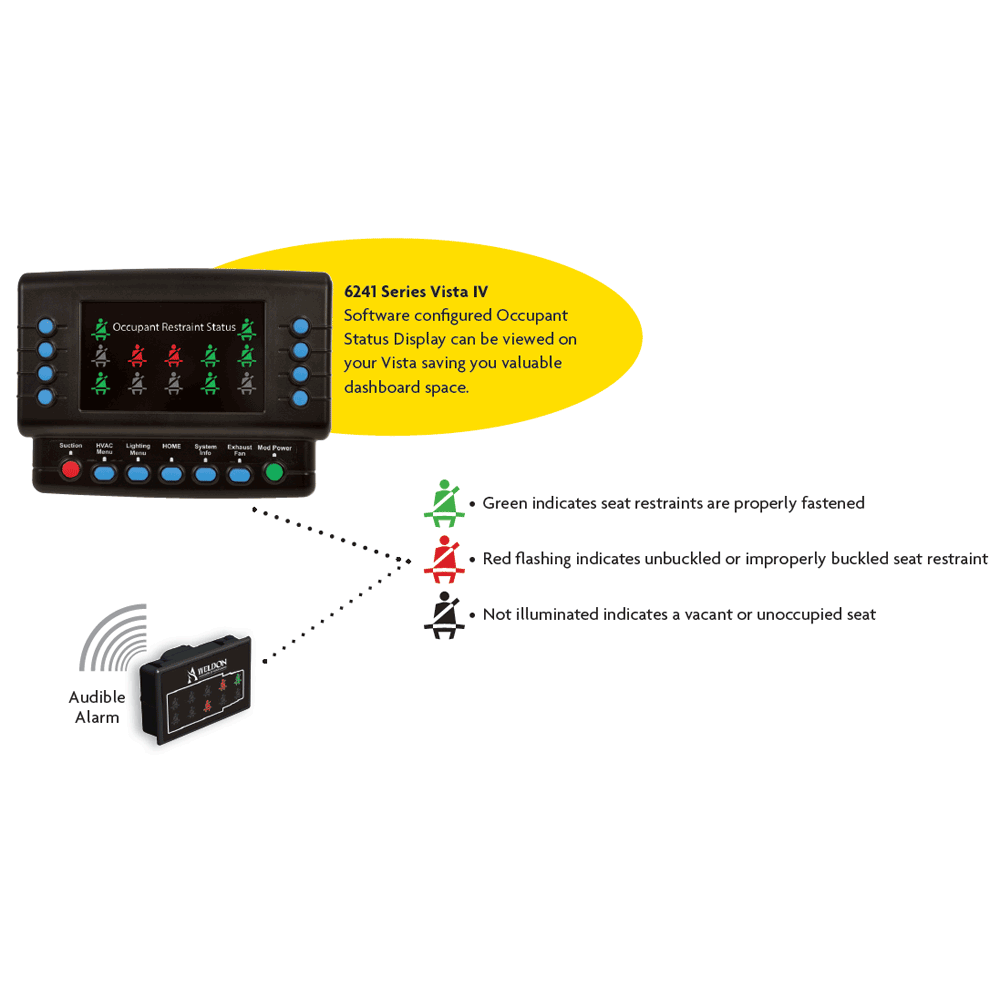

  • Seat Belt Warning System configered with the Vista IV

Features


  • Low profile, compact size

  • Supports commercial and custom cab seating layouts; up to 10 seats

  • Dimming feature adjusts indicator intensity to synchronize with dash lights

  • Integrated door open indicator

  • Built-in audible alarm will sound when the display is red and parking brake is released

  • Standard 4 year warranty

  • Use the 6020 node as an entry point system – update to the optional 6444 Vehicle Data Recorder (VDR)


The 6020 or 6444 nodes can accommodate up to 7 seat positions, master warning switch, and parking brake. The inputs can be configured within the SystemDesigner® software. More seats/inputs can be added by including an additional module.

Applications/Solutions

  • Ambulance OEMs

Specifications

Style 6204-0024-00
Brand V-MUX
Specify the Weldon Seat Belt Warning System in your next ambulance. The system shall consist of one of two Seat Belt Indicators, one indicator has eight seat positions, a door ajar and warning ICONs. The other indicator has ten seat positions. The indicator shall have an audible alarm to alert the driver when there is a seat violation. The seats shall be connected to the Weldon 16 input node or the VDR node. The System shall have at least 5 seconds of delay before setting off a violation to account for bumps.
