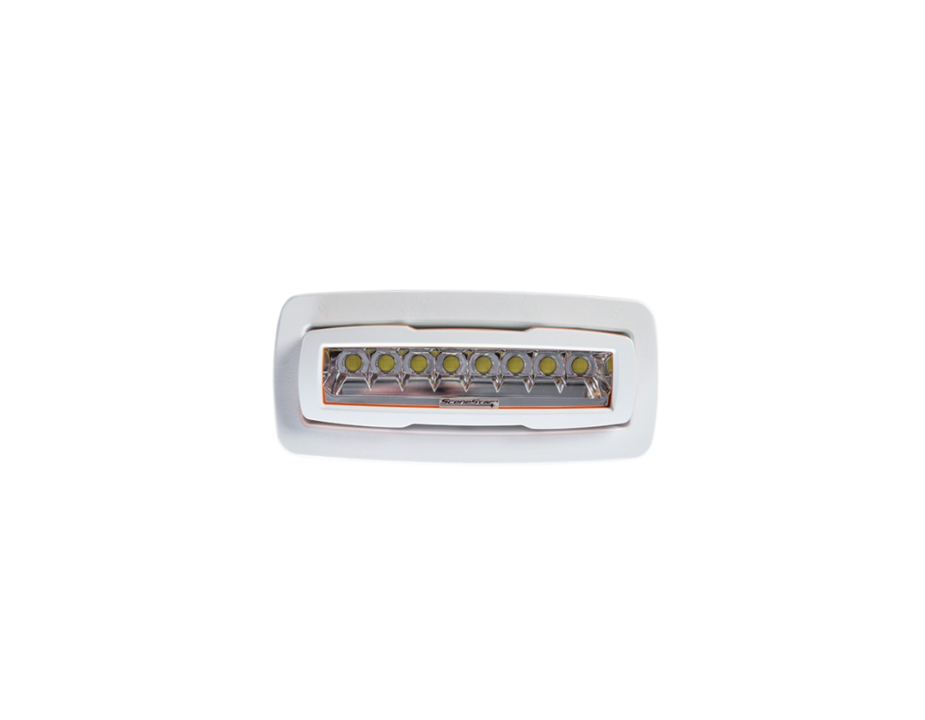

DC SceneStar Light Head with Recess Mount (LED 14000 Lumen)

The LED High Power Recessed Scene Light provides industry leading levels of light output with consistency and reliability. The SceneStar LED scene lights will continue to provide overall illumination even at elevated operating temperatures through optimized thermal management. Solid-state electronics ensure a lifetime of peak performance. Contact a distributor to learn more about our fire apparatus LED scene lights.

Be the first to review this product

Starting at $1,553.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep


Double click on above image to view full picture

Zoom Out
Zoom In

More Views


The DC SceneStar with Recess Mount LED scene lights contain features that include:

- Recessed within the apparatus body panel
- Mounts with less than 2'' of depth
- 14,000 Lumens
- Power: 150 Watts
- Voltage: 10-32 VDC Voltage
- Current: 12 amps (at 12 VDC), 6 amps (at 24 VDC)
- Lighthead Dimensions: 14" W x 4.25" H x 5.6" D (356 x 108 x 142 mm)
- Streamlined aesthetics in a compact design
- Standard color is white; black optional (note: handles and heat sink always black)
- Industry leading 6 year warranty
- Serviceable construction (Sustainable LED technology)
- Low ultraviolet light - attracts less insects during nighttime operation
- CE and UL ratings pending

Featured Scene Lighting Article

How to see everything: Akron Brass SceneStar LED Scene Light Series vs Halogen Scene Lighting


  • Firefighting - Structural

DC SceneStar Light Head with Recess Mount (LED 14000 Lumen) Video


Certification(s) Certification Certification
Warranty Warranty
Weight 10 lbs (4.5 kg)
Type Scene Light
Brand Extenda-Lite
Width 14'' (356 mm)
Height 4 1/4'' (108 mm)
Depth 5 5/8'' (142 mm)
Wattage 150
Volts 12/24 DC
Amperage 12 (12V)/6 (24V)
