ELSS-SLDC-BL

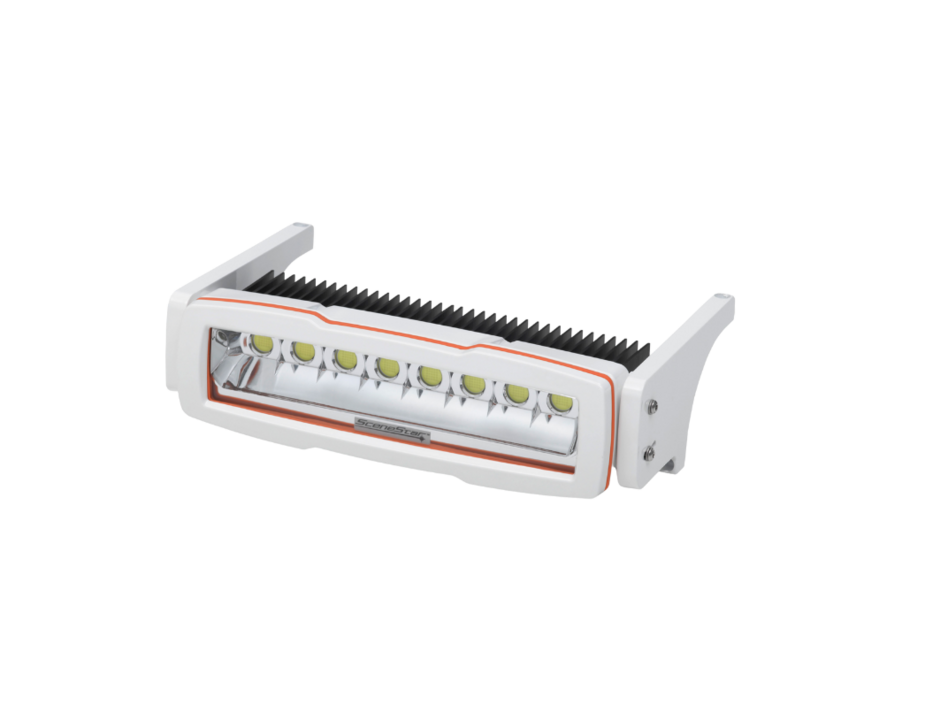

SceneStar LED Light Head with Brow Mount (AC and DC)

The new LED High Power Scene Light has been engineered to provide industry leading levels of light output with consistency and reliability. SceneStar LED scene lights will continue to provide overall illumination even at elevated operating temperatures through optimized thermal management. Solid-state electronics ensure a lifetime of peak performance. Contact a distributor to get more information about our LED scene lights.



Be the first to review this product

Starting at $1,529.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep

/

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features

SceneStar LED scene light with Brow Mount features:


- Designed specifically to fit the profile of the cab
- Provide CAB information when ordering
- Available with AC & DC SceneStars
- 19,000 Lumens
- Power: 220 Watts
- Voltage: 10-32 VDC Voltage
- Current: 18 amps (at 12 VDC), 9 amps (at 24 VDC)
- Lighthead Dimensions: 14" W x 4.25" H x 5.6" D (356 x 108 x 142 mm)
- Streamlined aesthetics in a compact design
- Standard color is white; black optional (note: handles and heat sink always black)
- Industry leading 6 year warranty
- Serviceable construction (Sustainable LED technology)
- Low ultraviolet light - attracts less insects during nighttime operation
- CE and UL ratings pending





Featured Scene Lighting Article


How to see everything: Akron Brass SceneStar LED Scene Light Series vs Halogen Scene Lighting




CertificationCertification



AC 20,000 Lumens

DC 14,000 Lumens

DC 19,000 Lumens

Style

ELSS-XLAC-BL

ELSS-SLDC-BL

ELSS-XLDC-BL

Power

220 Watts

150 Watts

220 Watts

Voltage

Voltage: 120 or 240 VAC (must specify)

10-32 VDC Voltage

10-32 VDC Voltage

Current

1.8 amps (at 120 VAC), .9 amps (at 240 VAC)

12 amps (at 12 VDC), 6 amps (at 24 VDC)

18 amps (at 12 VDC), 9 amps (at 24 VDC)

SceneStar LED Light Head with Brow Mount (AC and DC) Video

Specifications

Style ELSS-SLDC-BL
Certification(s) Certification Certification Certification Certification
Warranty Warranty
Weight 10 lbs (4.5 kg)
Type Scene Light
Brand Extenda-Lite
Width 14'' (356 mm)
Height 4 1/4'' (108 mm)
Depth 5 5/8'' (142 mm)
