Conquest Remote Control Monitor System

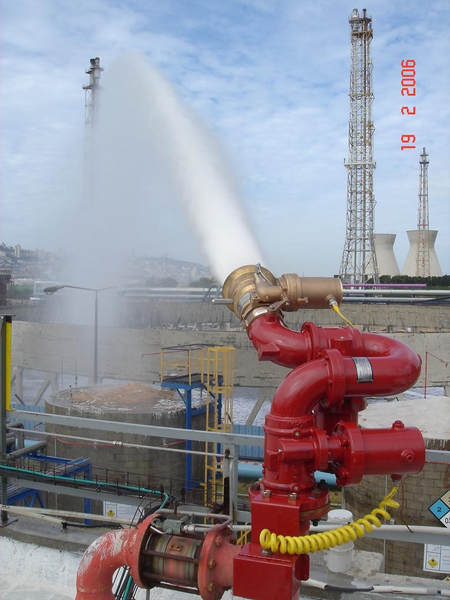

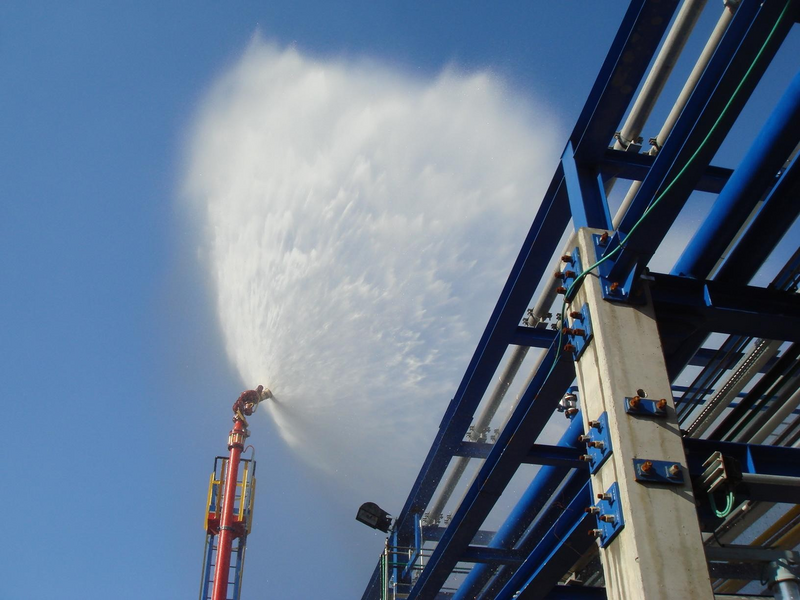

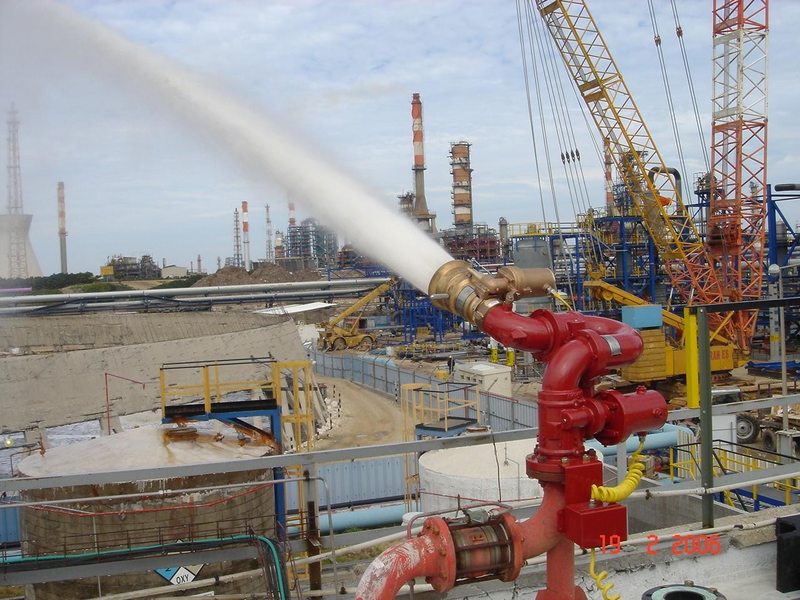

The Conquest Electric Remote Controlled Monitor System was designed as a small compact unit with exceptional performance and value. This System is ideal for use in industrial fire suppression, vapor mitigation, and other fixed site applications. In addition, the Conquest is an ideal petro-chemical monitor.


Find a distributor near you to learn more.

Be the first to review this product

Please call for pricing
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep

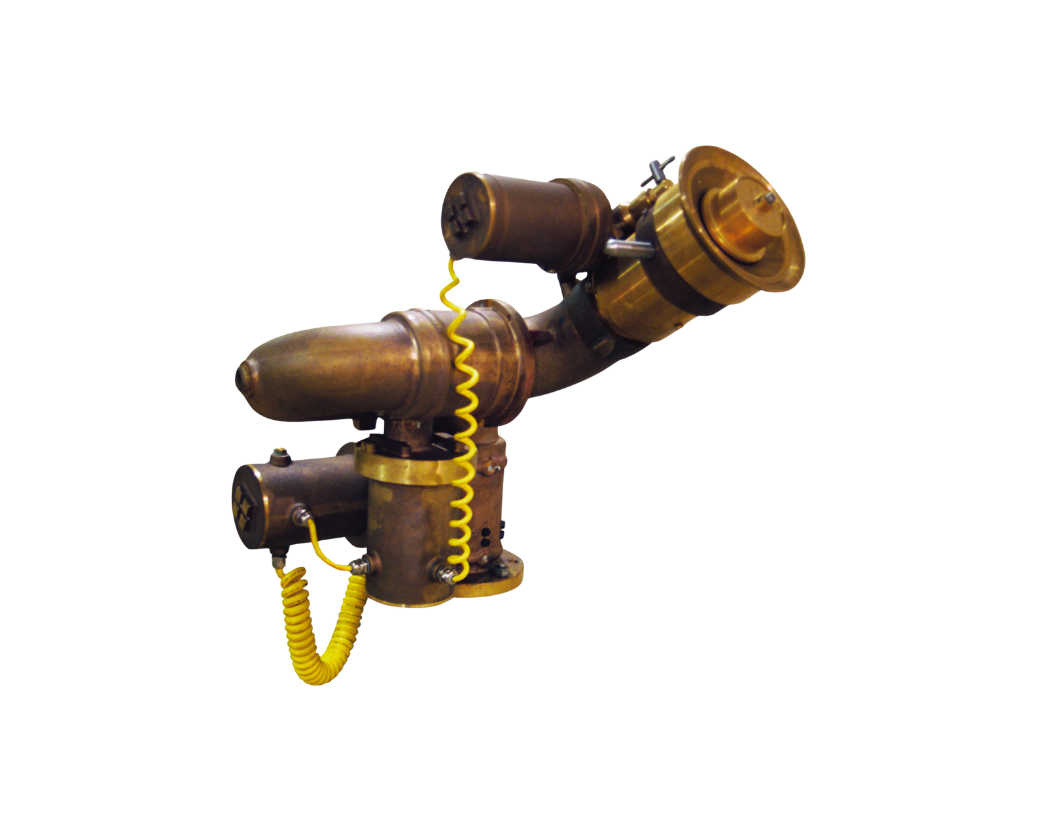

Conquest Remote Control Monitor System

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features

Conquest Electric Monitor System
- Brass construction for use in severe environments
- Efficient flows up to 2000 gpm (7600 lpm) through a 4'' waterway
- FM approved for NEC Class 1, Div 2, Groups C & D hazardous locations
- Electric motors with current limiting and dynamic braking

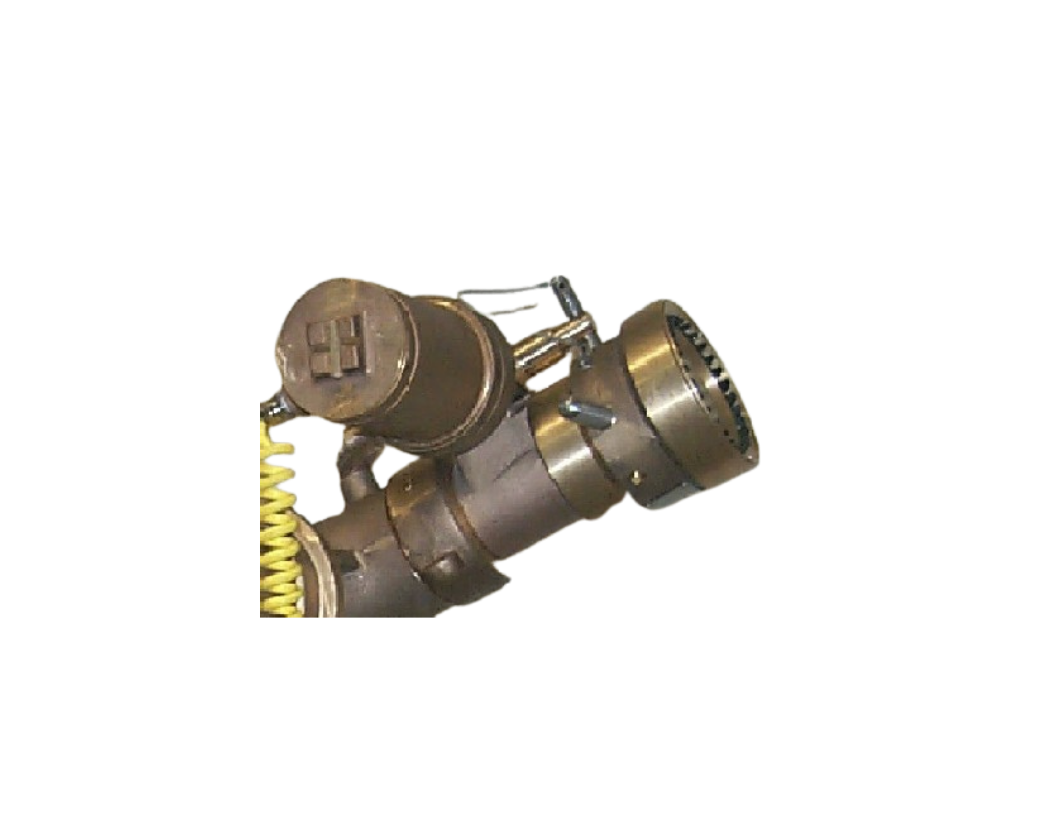

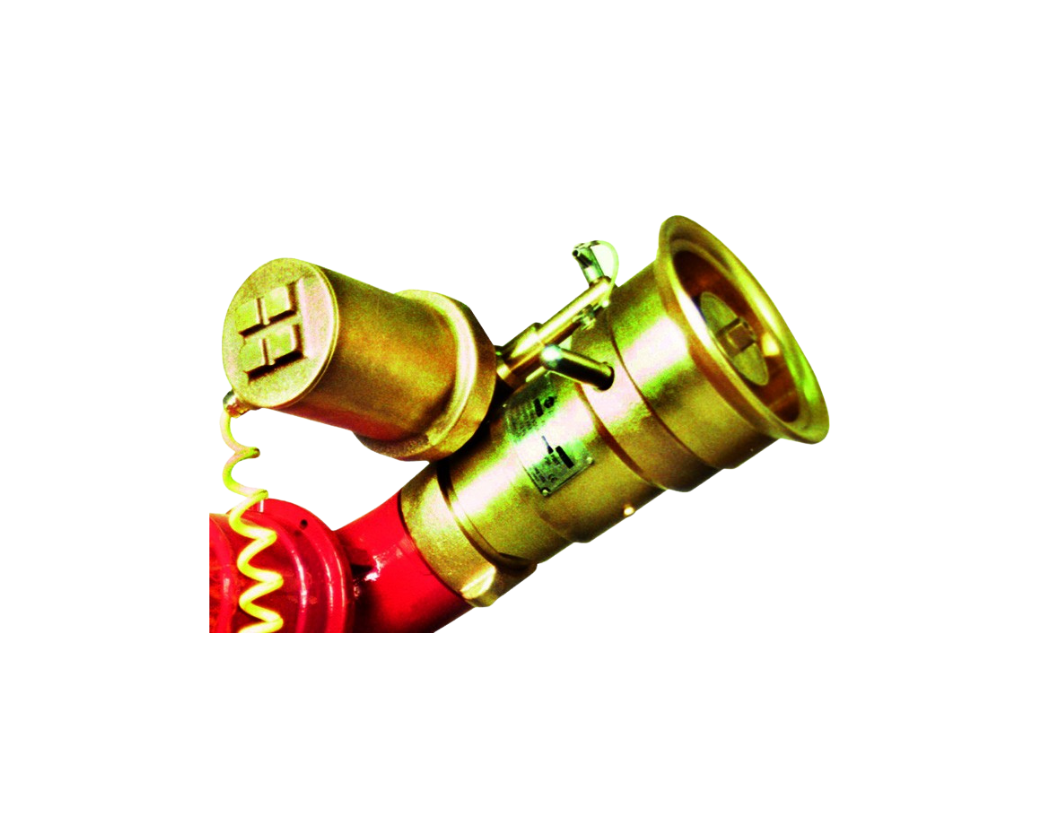

- Fixed or automatic baffle nozzles
- Manual overrides

Certification

Conquest Remote Control Monitor System Video

Specifications

Style 3678
Certification(s) Certification
Type Industrial
Material Brass
Brand Conquest
Width 20.65in (523.75mm)
Height 21.53in (546.9mm)
Depth 20.65in (523.75mm)

Access Drawings for Engineers

Contact Us with Questions

Name Type

Installation and Service Documents

Contact Us with Questions

Name Sheet #
Manual View File Style 3678 & 3878 Motor Coupling Replacement Instructions 126162

Software Updates and Downloads

Contact Us with Questions

Type Description Instructions Version Updated File

Product Updates and Media Files

Description Type Size
View File Akron Brass Industrial Solutions Brochure View File 2.39 MB
