PWM Converter Module

This module eliminates the visible flicker that is sometimes associates with PWM dimming of dome lamps. Converts instable PWM lamp signal to a very stable and visually pleasant lamp control.

Be the first to review this product

Starting at $152.60 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep
Availability: Now shipping within 4 weeks. Exclusions may apply
Availability refers to the estimated time to ship the item in standard configuration, from Akron Brass' facility. Non-standard threads and quantities in excess of 10 may require longer ship dates. Total delivery time is subject to carrier selection and distance to destination. All shipping estimates are subject to change without notice.
Contact one of our authorized distributors for a competitive price quote and faster ship times.

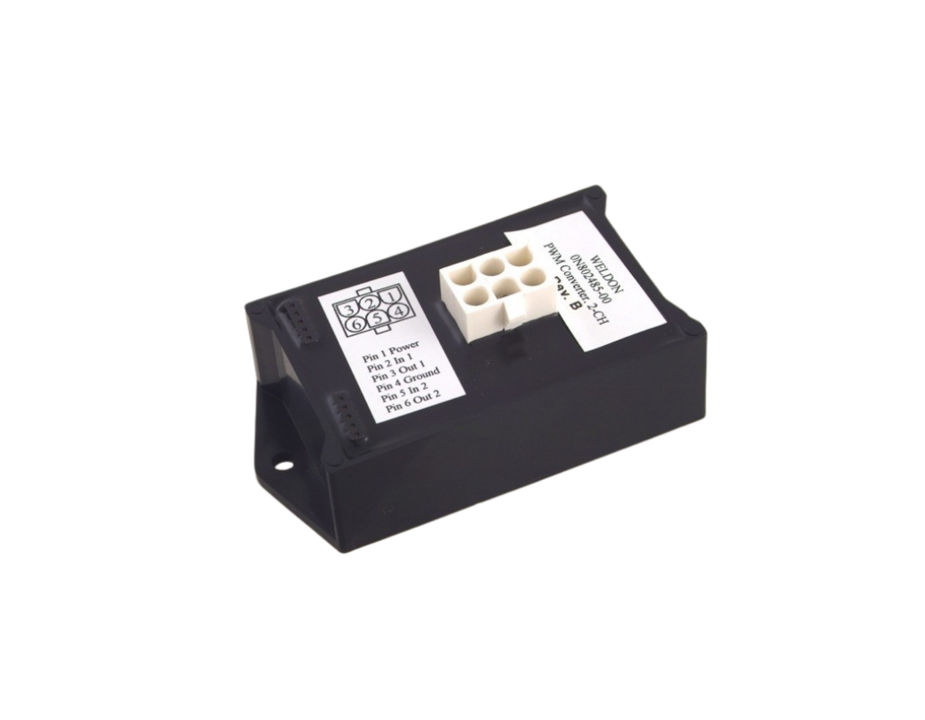

PWM Converter Module

Double click on above image to view full picture

Zoom Out
Zoom In

More Views


Module has two output channels which can independently supply up to 10A. Maximum total current through the module is limited to 15A due to the connector rating.


Style 0N80-2485-00
Width 4 in (102 mm)
Height 2 in (50 mm)
Depth 2.0 in (50 mm)
Carton Quantity 1
Volts 12.8
Amperage 15 max
Replacement part for the PWM Converter Module
