1020-9000-10

School Bus Warning Light, Red, Serviceable Lens / Serviceable LED, 8 V-LED

Weldon’s revolutionary sustainable LED Pupil Warning Light combines advanced electronics, excellent thermal performance, low current draw, long-life, and low life-cycle cost in the only service lens and serviceable LED lamp design. If you want more information about this strobe warning light or any of our other school bus lights, contact a Weldon distributor today.

Be the first to review this product

Starting at $146.75 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep
Availability: Now shipping within 4 weeks. Exclusions may apply
Availability refers to the estimated time to ship the item in standard configuration, from Akron Brass' facility. Non-standard threads and quantities in excess of 10 may require longer ship dates. Total delivery time is subject to carrier selection and distance to destination. All shipping estimates are subject to change without notice.
Contact one of our authorized distributors for a competitive price quote and faster ship times.

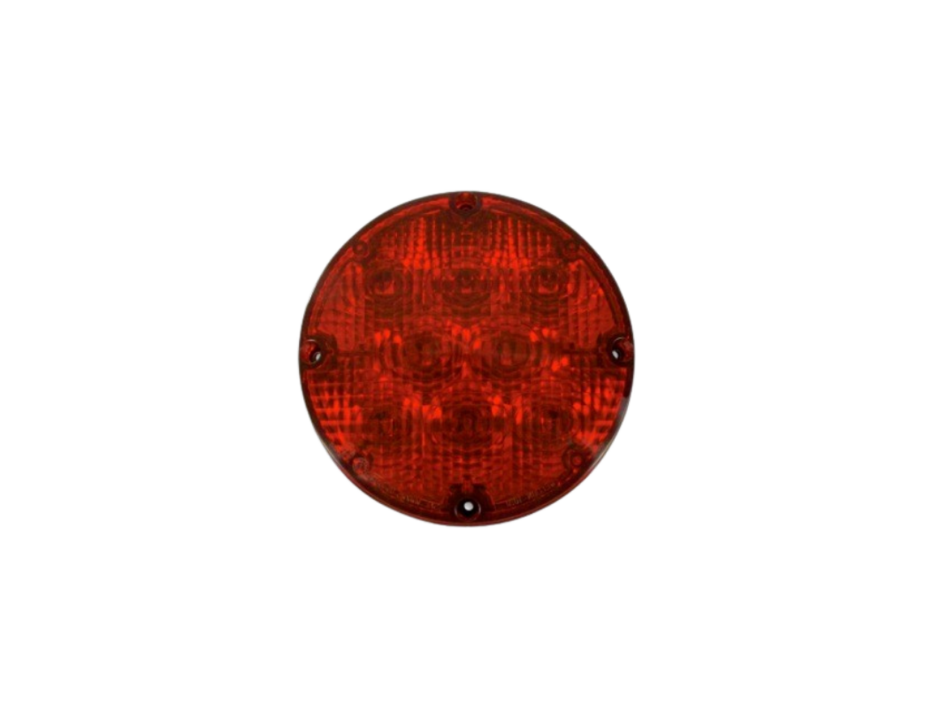

Weldon 1020-9000-10 LED Warning Lamp

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Weldon 1020-9000-10 LED Warning Lamp

Features

-Patented V-LED technology for superior brightness, thermal efficiency, and longevity
-Eight V-LED school bus lights design fully illuminates lens area and greatly exceeds J887 performance requirements as required by FMVSS
-Available as a strobe warning light or standard flash configurable (wire selection)
-Strobing or standard flash configurable (wire selection)
-Standard with 3 lead wires (power, ground, strobe enable); OEM style connector options available
-Instant-on for maximum signal safety
-Lamp electronics are hardened against EMI/RFI and electrical transients; lamp does not produce EMI that can cause radio interference
-Advanced lens design for maximum optical performance and efficiency
-Replaceable/Serviceable components (Lenses, V-LED, gaskets)
-Die-cast housing provides excellent corrosion resistance, thermal performance, and mechanical durability
-5 year warranty for ensured school bus safety

Specifications

Style 1020-9000-10
Depth 1.44 in (36.6 mm)
Diameter 7.1 in (180 mm)
Carton Quantity 12
Wattage 9
Volts 10-16VDC
Amperage 0.75
No other LED Warning Light offers “service made easy” with upgradeable LED technology
