Omega 3'' Single Waterway Monitor4" flange x 2.5" NH outlet, monitor only

Akron Omega Single Waterway Monitors provide a simple tiller bar control and manual friction brake operation. The full 3" waterway delivers efficient flows up to 1250gpm.

Be the first to review this product

Starting at $2,338.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep
Availability: Now shipping within 5 business days. Exclusions may apply
Availability refers to the estimated time to ship the item in standard configuration, from Akron Brass' facility. Non-standard threads and quantities in excess of 10 may require longer ship dates. Total delivery time is subject to carrier selection and distance to destination. All shipping estimates are subject to change without notice.
Contact one of our authorized distributors for a competitive price quote and faster ship times.

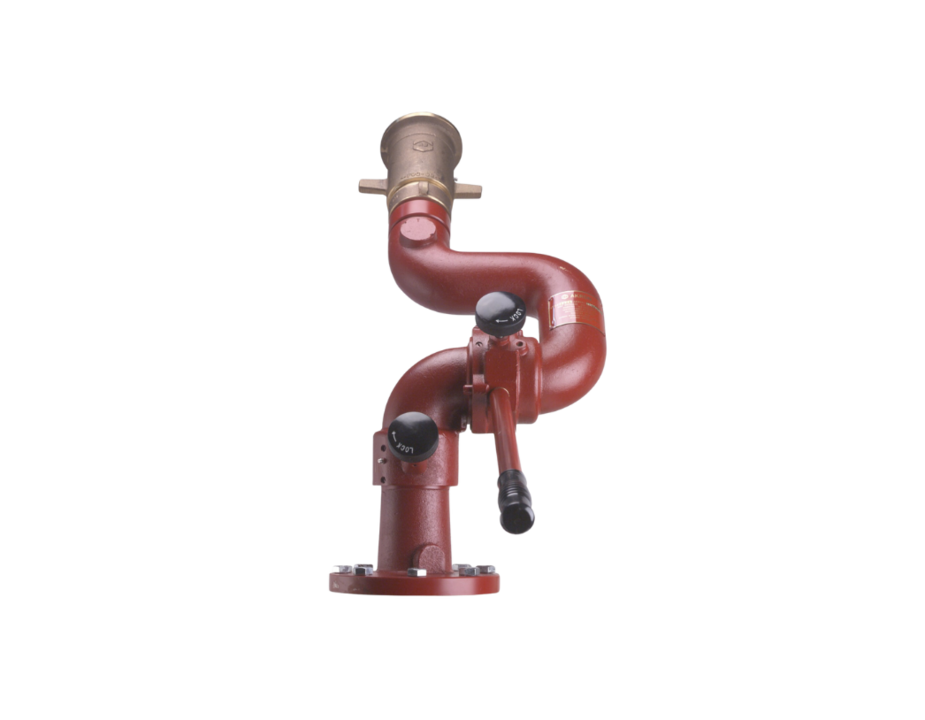

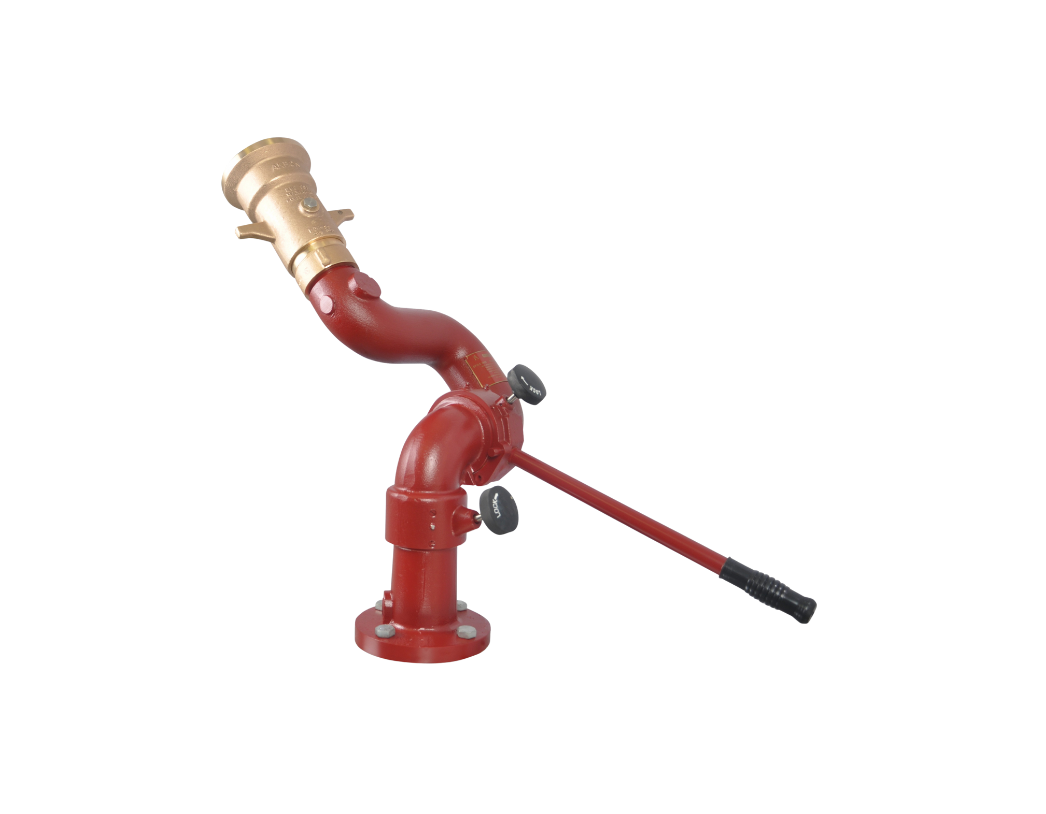

Omega 3'' Single Waterway Monitor4" flange x 2.5" NH outlet, monitor only

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features

Omega Monitor
- Full 3'' waterway
- Brass construction
- Cast-in turning vanes for more efficient flow
- 360° horizontal and 150° vertical travel
- Elevation 90° above to 60° below horizontal

Certification

Specifications

Style 3526
Certification(s) Certification
Weight 72 lbs (32.7 kg)
Type Industrial
Material Brass
Brand Omega
Width 11 1/2'' (292 mm)
Height 17'' (432 mm)
Depth 32 3/4'' (Less nozzle) (832 mm)
Inlet 2 1/2'', 3'' or 4'' FL (65, 75 or 100 mm)
Outlet 2 1/2'' (65 mm)
Flow (GPM) 1250
Flow (LPM) 4800

3526 Omega™ Monitor Specifications

Single waterway brass monitor with friction loss not to exceed 10 psi at 800 gpm. Monitor to be all brass construction with 3" waterway and 2 1/2" male discharge. The vertical travel lock shall incorporate a friction lock within the swivel joint. All elbows shall have cast-in turning vanes. Monitor shall have a vertical travel of 150° and horizontal travel of 360°.

Access Drawings for Engineers

Contact Us with Questions

Name Type
Style 3526 STP File (3" Flange) View File

Installation and Service Documents

Contact Us with Questions

Name Sheet #
Manual View File Style 9526 Installation Instructions - 3526 Service Kit 110141
Part List View File Style 3526 Parts List - Omega 104625
Manual View File Style 3426 / 3526 Installation Instructions 104624

Software Updates and Downloads

Contact Us with Questions

Type Description Instructions Version Updated File

Product Updates and Media Files

Description Type Size
View File Nozzle Monitor Compatibility Chart for Industrial & Portable Monitors View File 443.78 KB
