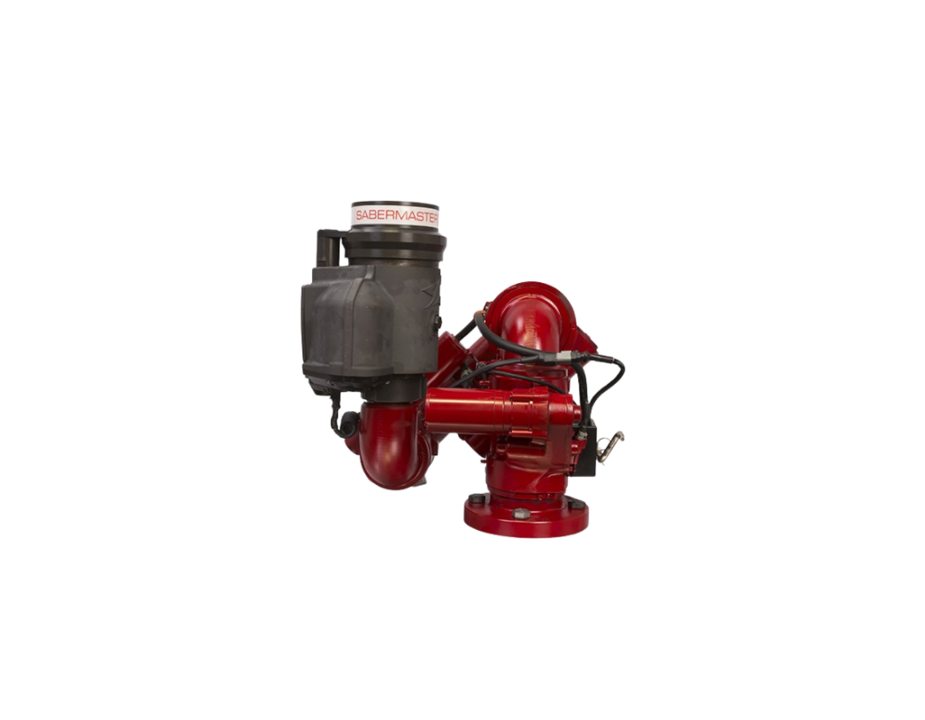

DeckMaster Electric Monitor12V Monitor, logic box, control box

The DeckMaster Monitor is a technologically advanced, electrically controlled deck monitor with automated elevating capability.
Starting at
$11,634.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Contact one of our authorized distributors for a competitive price quote.
Find a Distributor | Find a Sales Rep

DeckMaster Electric Monitor12V Monitor, logic box, control box

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features

The unique design of the DeckMaster Monitor allows electric elevation and positioning 26'' above the base of the flange for operation over obstructions with the push of a switch. DeckMaster Electric Monitor
- 340° horizontal rotation with adjustable stops
- Vertical travel 90° above to 45° below horizontal
- Manual override for horizontal, vertical and elevation control
- Stow position set easily by the end user
- Automatic drain for freeze protection
- Diagnostic light for trouble-shooting
- Connection for deployed indicator light
- Available in 12 or 24 volt - Must specify
- Optional position feedback - Must specify

DeckMaster Electric Monitor12V Monitor, logic box, control box Video

Specifications

Style 3440
Type Electrical
Brand DeckMaster
