Mercury Nozzle 500 GPM Fixed Gallonage

The Mercury nozzles have excellent straight stream performance and a wide, dense, fully adjustable fog
pattern. Choose between the single flow orifice Style 4445 and the adjustable flow baffle Style 4447.

Be the first to review this product

Starting at $661.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep
Availability: Now shipping within 5 business days. Exclusions may apply
Availability refers to the estimated time to ship the item in standard configuration, from Akron Brass' facility. Non-standard threads and quantities in excess of 10 may require longer ship dates. Total delivery time is subject to carrier selection and distance to destination. All shipping estimates are subject to change without notice.
Contact one of our authorized distributors for a competitive price quote and faster ship times.

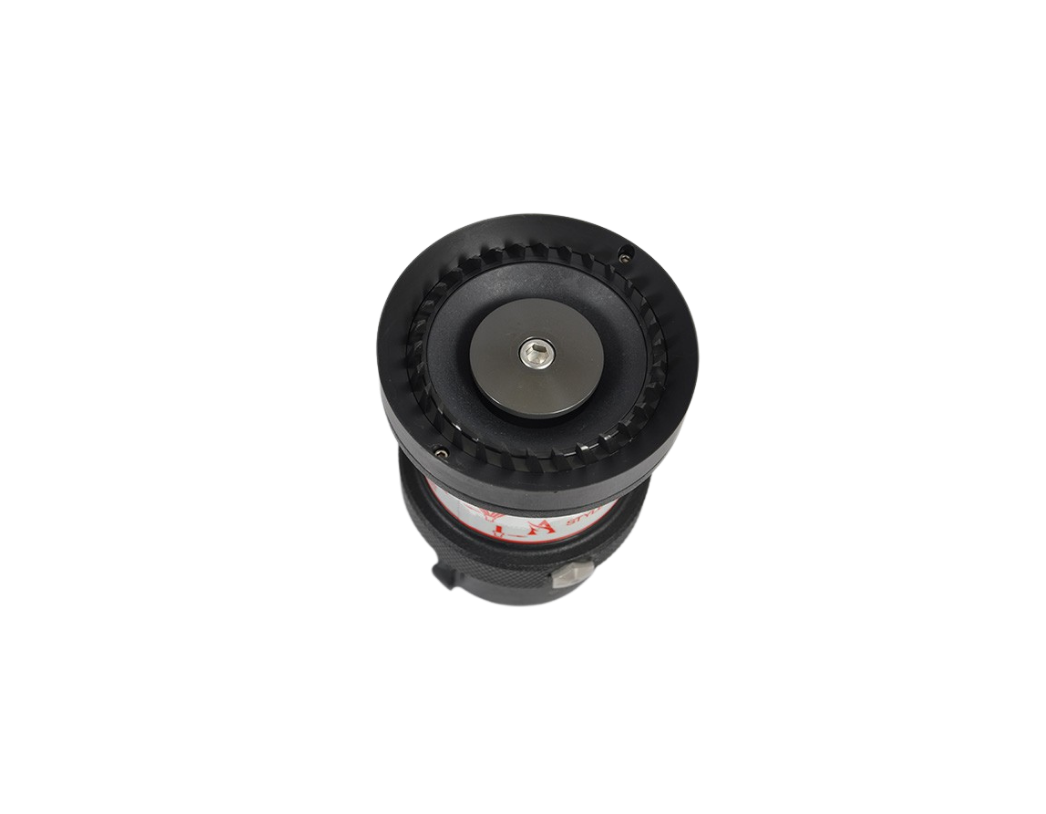

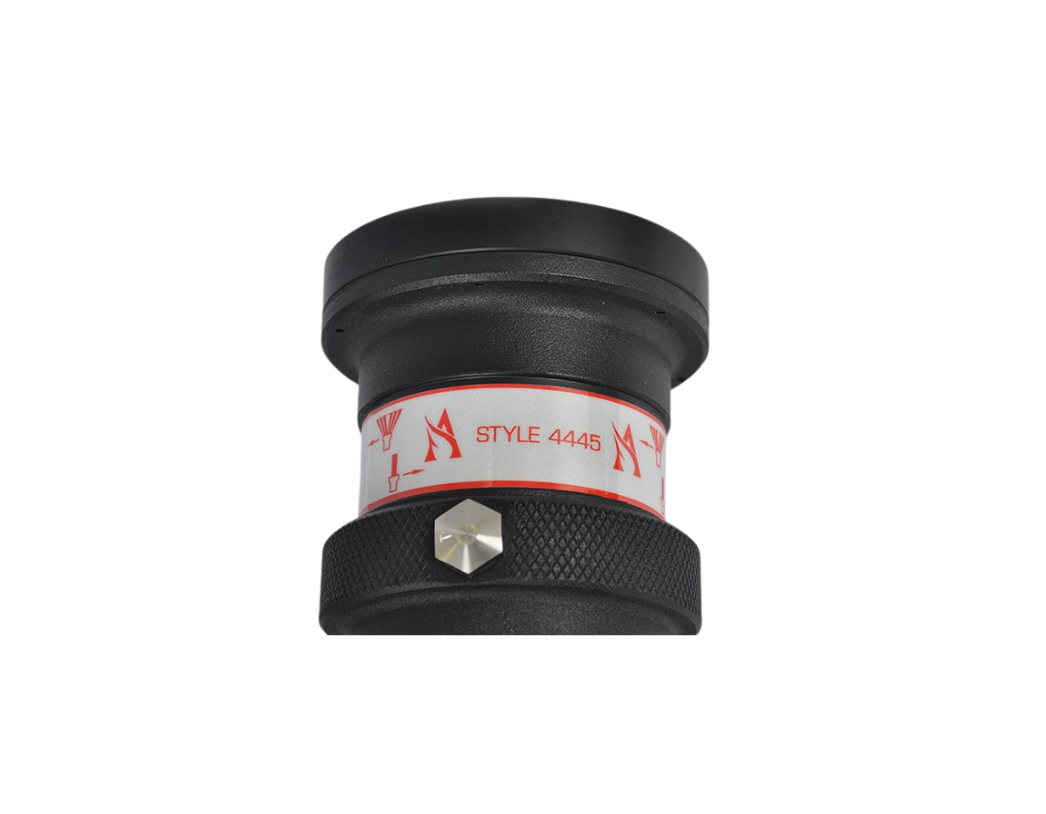

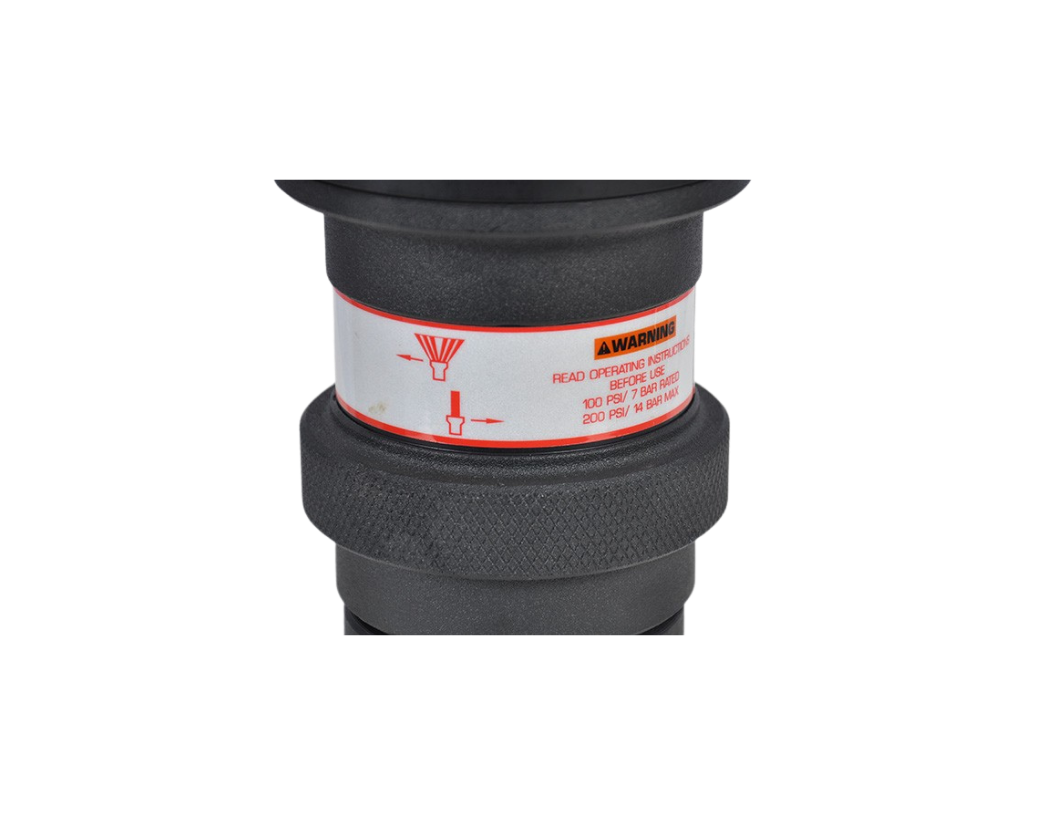

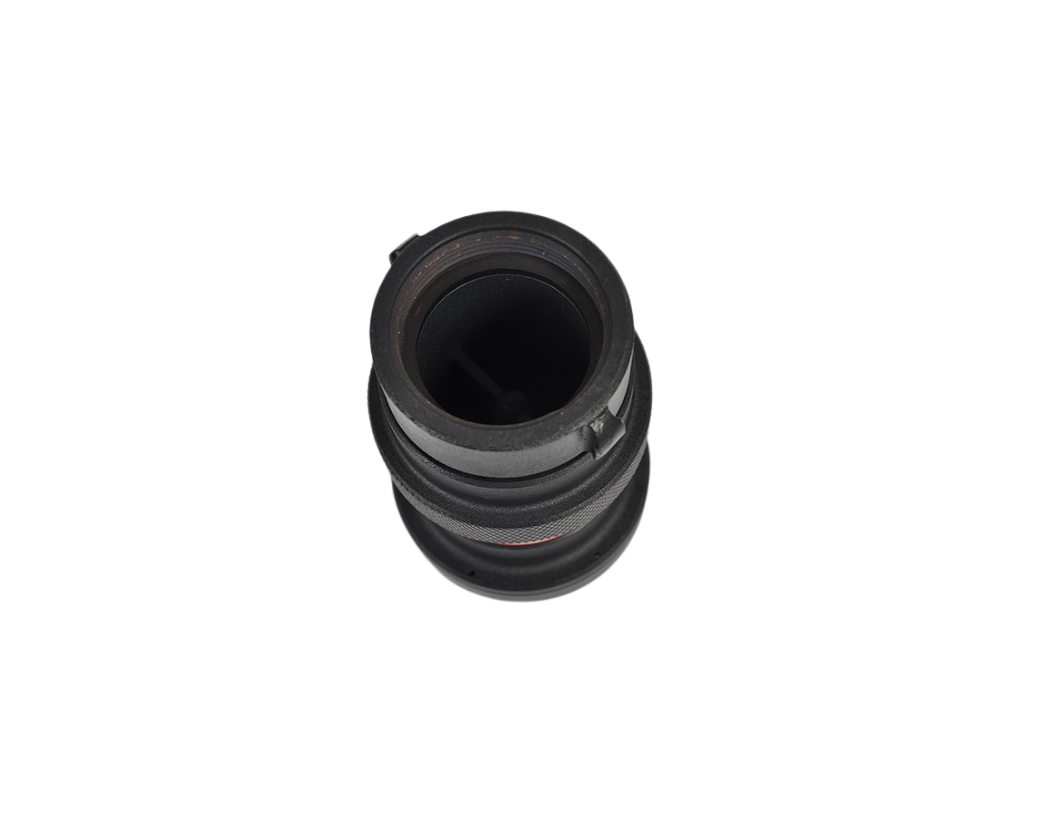

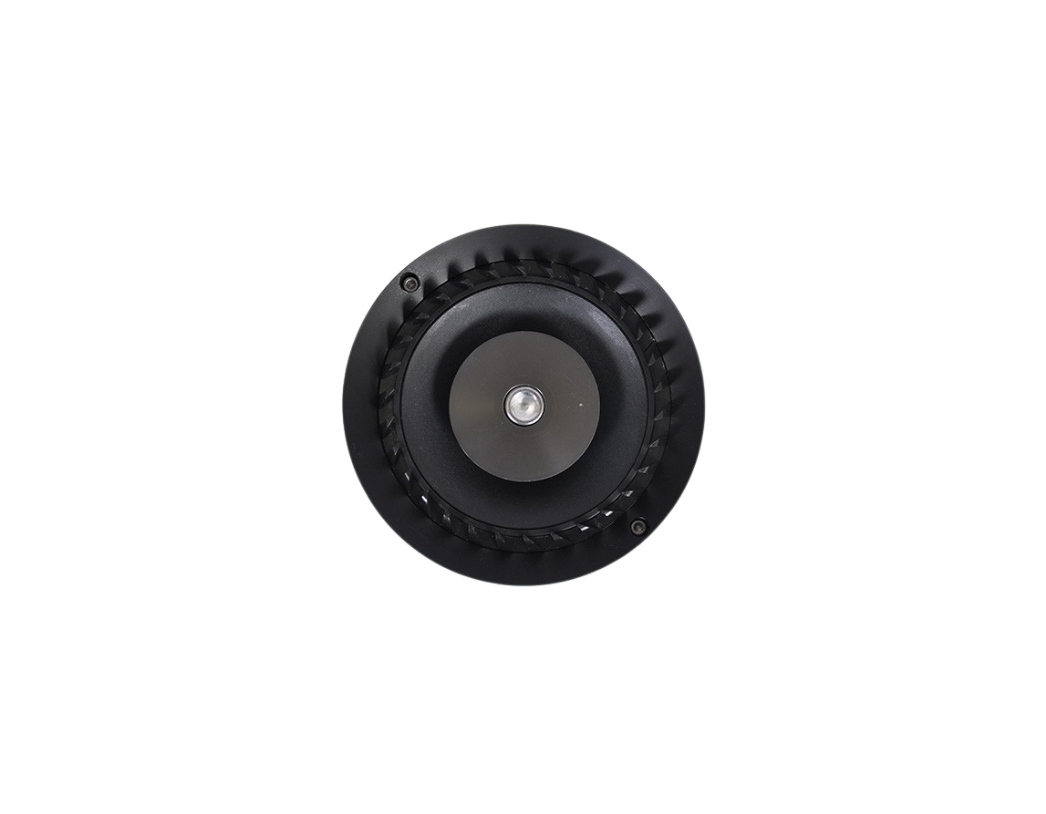

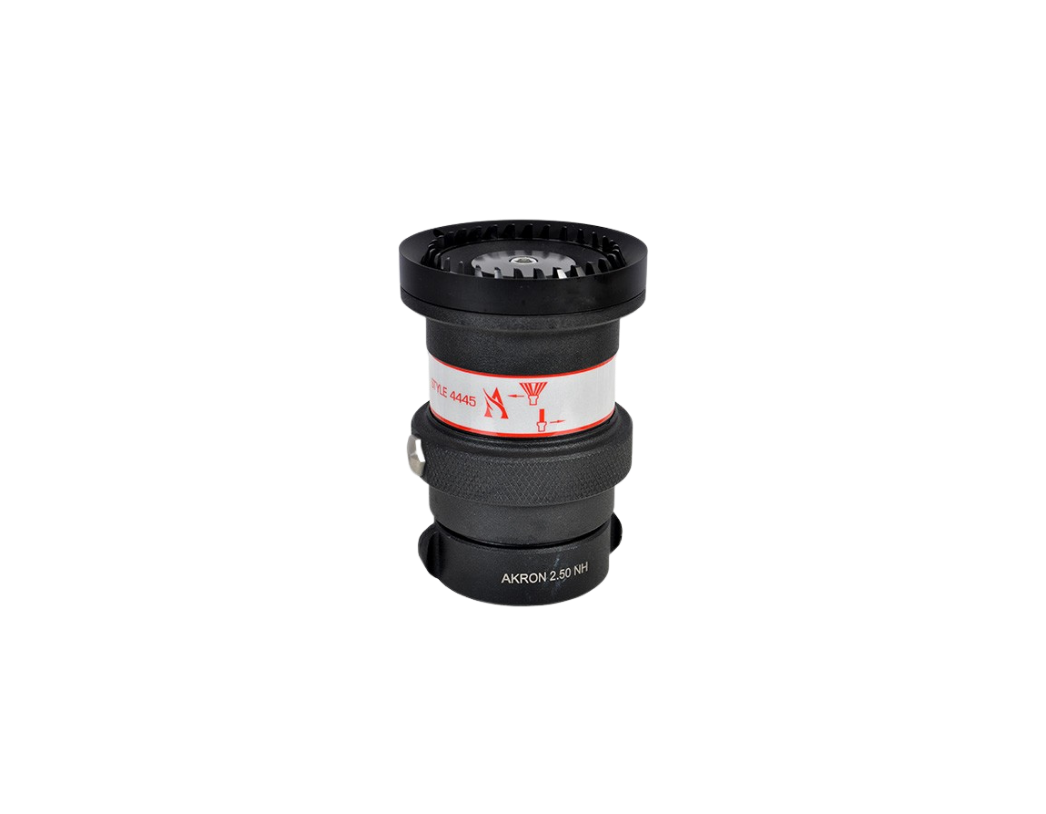

Mercury Nozzle 500 GPM Fixed Gallonage

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features

The Mercury nozzles have excellent straight stream performance and a wide, dense, fully adjustable fog
pattern. Choose between the single flow orifice Style 4445 and the adjustable flow baffle Style 4447.

- Pyrolite Material

- Manual Pattern Control

- 500 gpm (1900 lpm) flow at 100 PSI (7 bar)

- 2 1/2" (65 mm) Inlet

- Spinning Teeth

- 7" (178 mm) long
5 lbs. (2.3 kg.)

Mercury Nozzle 500 GPM Fixed Gallonage Video

Specifications

Style 4445
Warranty Warranty
Weight 5 lbs (2.3 kg)
Type Master Stream
Material Pyrolite
Brand Mercury
Length 7" (178 mm)
Width 5" (127 mm)
Height 5" (127 mm)

Access Drawings for Engineers

Contact Us with Questions

Name Type
Style 4445 STP File View File

Installation and Service Documents

Contact Us with Questions

Name Sheet #
Part List View File Style 4445 & 4447 Mercury Nozzle Parts List 119029
Manual View File Style 4445 & 4447 Mercury Nozzle Operating and Maintenance Instructions 119030

Software Updates and Downloads

Contact Us with Questions

Type Description Instructions Version Updated File

Product Updates and Media Files

Description Type Size
View File Nozzle Monitor Compatibility Chart for Municipal Montiors View File 454.31 KB
View File Nozzle Monitor Compatibility Chart for Industrial & Portable Monitors View File 443.78 KB
