Manual Elevated Monitor 20' Tower with monitor, nozzle and cables

Akron Brass' Manual Elevated Monitor is ideal for industrial fixed site applications. Its' unique design features the most compact, simple and efficient elevated monitor with superior performance.

Be the first to review this product

Please call for pricing
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep

Manual Elevated Monitor 20' Tower with monitor, nozzle and cables

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features

Manual Elevated Monitor


- Corrosion resistance materials used throughout
- Heights 10, 15 and 20 feet (3, 4.5 and 6 m)
- Flow rate up to 750 GPM (2400 LPM)

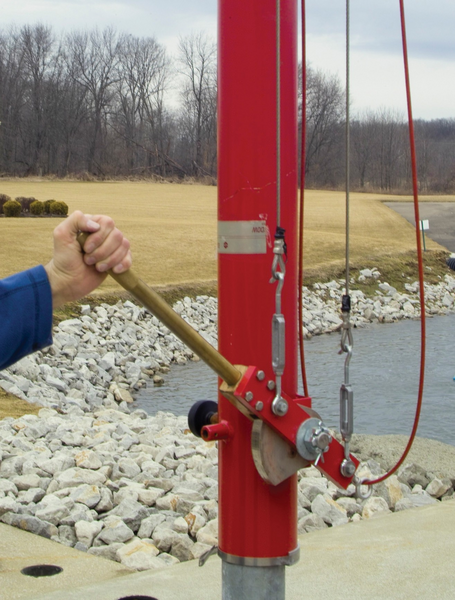

- Rotation and elevation Locking handle at the base of the tower

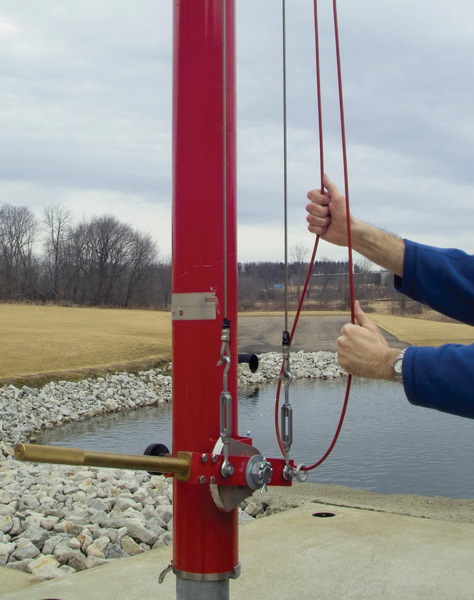

- Nozzle pattern adjustment cables at the base of the tower

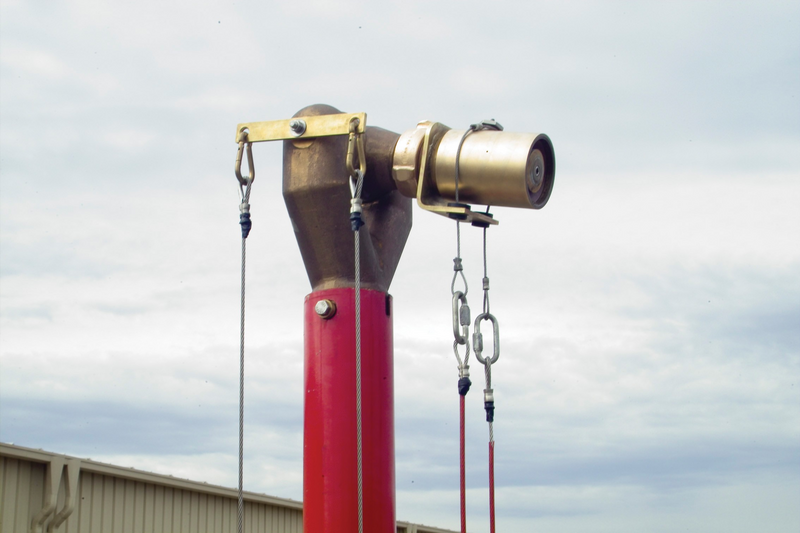

- Optimized nozzle design - Excellent reach: 235 feet (72 m) at 750 GPM (2900 LPM) - Trouble free pattern actuation - Integral stream shaper
- Maintenance free rotation joint design

Specifications

Style 3530
Weight 402 lbs (183 kg)
Type Elevated Monitor
Material Brass / Steel
Width 10.13in (257.3mm)
Height 20ft (6.01m)
Depth 26.75in (679.5mm)
