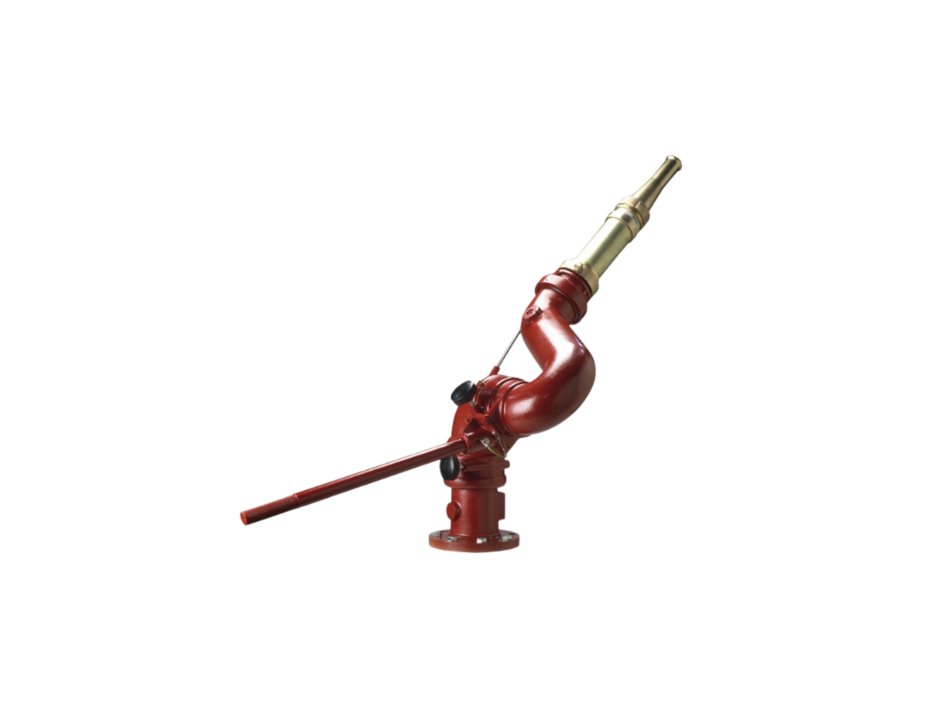

Apollo 4'' Single Waterway Monitor

Akron Apollo Single Waterway Monitors provide a simple tiller bar control and manual friction brake operation. The full 4" waterway delivers efficient flows up to 2000gpm.

Be the first to review this product

Starting at $5,937.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep

Apollo 4''  Single Waterway Monitor

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Features


- Designed for fixed installations in non-corrosive environments
- Durable lightweight Pyrolite construction
- Cast-in turning vanes in each elbow for more efficient flow and improved stream performance
- 360° horizontal and 150° vertical travel
- Elevation 90° above to 60° below horizontal
- A friction lock on both the vertical and horizontal travel
- Built-in pressure gauge and gauge guard
- Gas spring for better balance with various nozzle weights

Specifications

Style 3436
Weight 37 lbs (16 kg)
Type Deck Pipe
Material Pyrolite
Brand Apollo
Width 17.5in (444.5mm)
Height 18.25in (463.6mm)
Depth 42.19in (1071.63mm)

Access Drawings for Engineers

Contact Us with Questions

Name Type

Installation and Service Documents

Contact Us with Questions

Name Sheet #
Manual View File Apollo Ground Base Spike Caps 119639
Manual View File Style 3436 / 3437 Installation and Operation Instructions 117273
Part List View File Style 3436 / 3437 Parts List 104443

Performance Content

Contact Us with Questions

Name Type

Software Updates and Downloads

Contact Us with Questions

Type Description Instructions Version Updated File

Product Updates and Media Files

Description Type Size
View File Nozzle Monitor Compatibility Chart for Municipal Montiors View File 454.31 KB
