1.800.228.1161
|
3071

95 GPM Brass In-Line Eductor

Akron Municipal Eductors feature a large, easy to read, and removable metering dial with settings between 0% and 6%. The Eductors are rated to flow at 200 psi (14 bar) inlet pressure and work effectively with nozzles rated from 50 to 100 psi (3 to 7 bar).

Be the first to review this product

Starting at $1,349.00 MSRP
All prices listed are the manufacturer’s suggested retail price, also referred to as "List Price", and are for U.S. domestic resale and exclude any: Local, State and/or Federal sales and excise taxes; International Tariffs and Taxes; and Shipping. Final price will be set by retailer. All prices, terms and conditions are subject to change without notice. Special Orders - Akron Brass produces many items to specification that are not carried in stock; after an order in this category has been accepted and placed in the process of manufacturing, no cancellations will be accepted.
Find a Distributor | Find a Sales Rep

95 GPM Brass In-Line Eductor

More Views

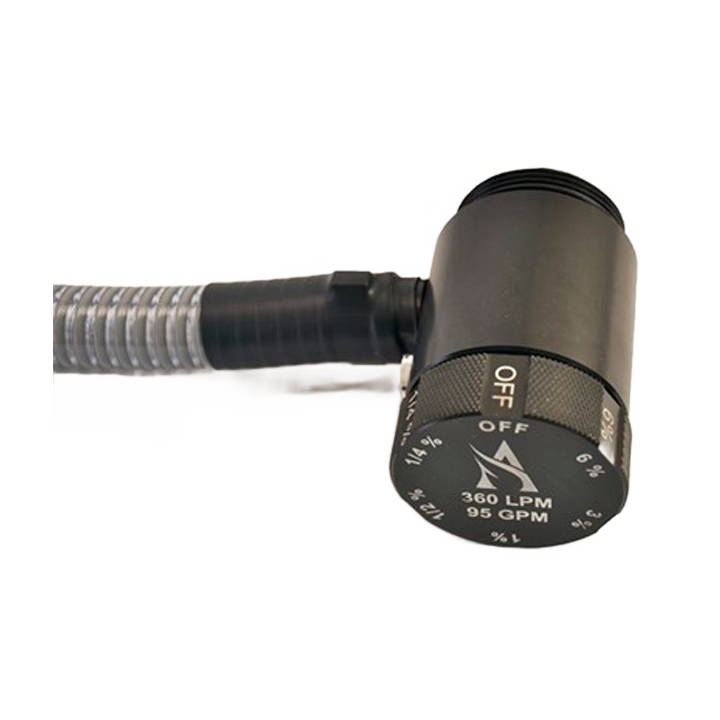

  • Eductor Metering Head - Pyrolite

Features

- Rugged brass construction
- Large, easy to read, and removable metering dial with settings between 0% and 6%. Detents at 1/4, 1/2, 1, 3 and 6%
- Rated to 95 gpm (360 lpm) at 200 psi (14 bar) inlet pressure
- Works effectively with nozzles rated from 50 to 100 psi (3 to 7 bar)
- 1 1/2" (38 mm) swivel inlet x 1 1/2" (38mm) male
- 30" pickup hose standard on 95 gpm (360 lpm) eductors, 48" hose optional

Specifications

Style 3071
Type Eductors
Material Brass
